| Brand Name | Wecantester |
|---|---|
| Place of Origin | |
| Standards | BIFMAX 5.1-2017, BS EN 1335-2:2018, QB/T 2280-2016 |
| topic | standard | Chapter | Chapter title | ||
| standard | QB/T 2280-2016 | 6.6.6 | Caster reciprocating wear | ||
| BIFMA X5.1-2017 | 16 | Caster/Chair Base Durability Test -Cyclic | |||
| BS EN 1335-2:2018 | Annex A5 | Castor and chair base durability | |||
| Numbering | WT-BFM-17-01 | WT-BFM-17-02 | WT-BFM-17-04 | ||

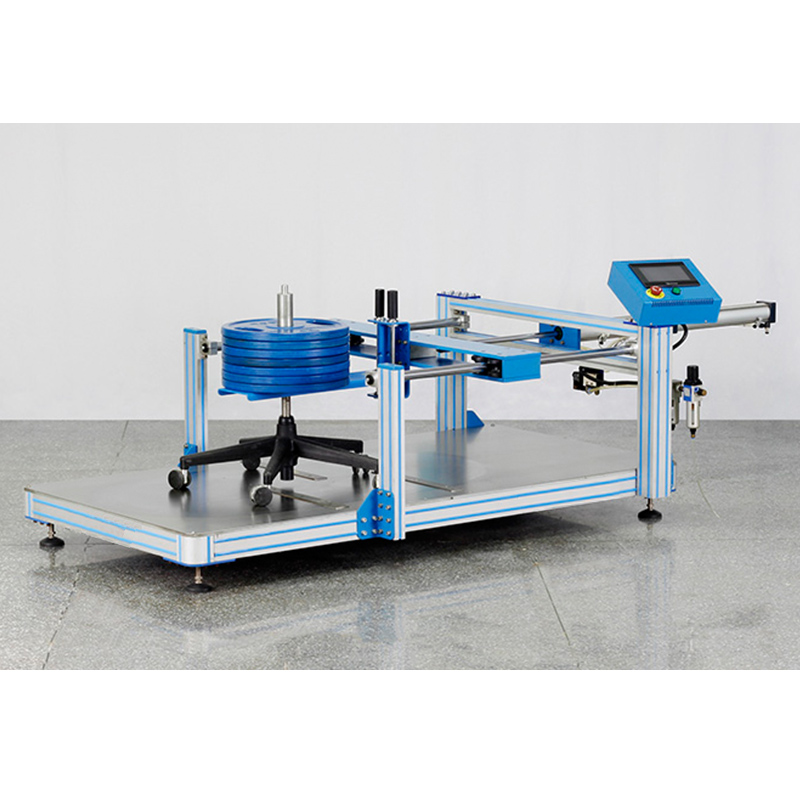

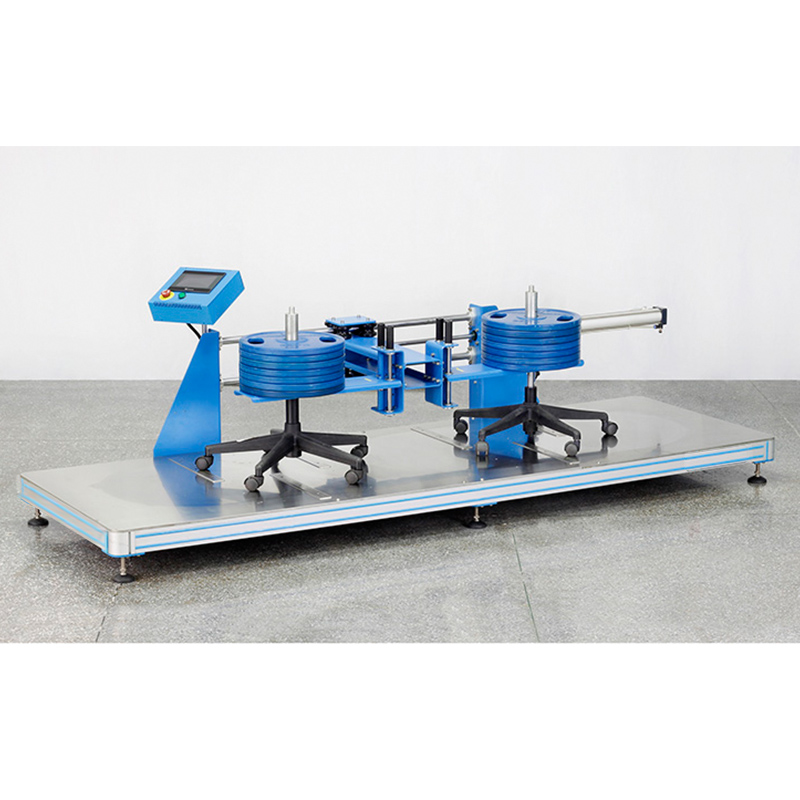

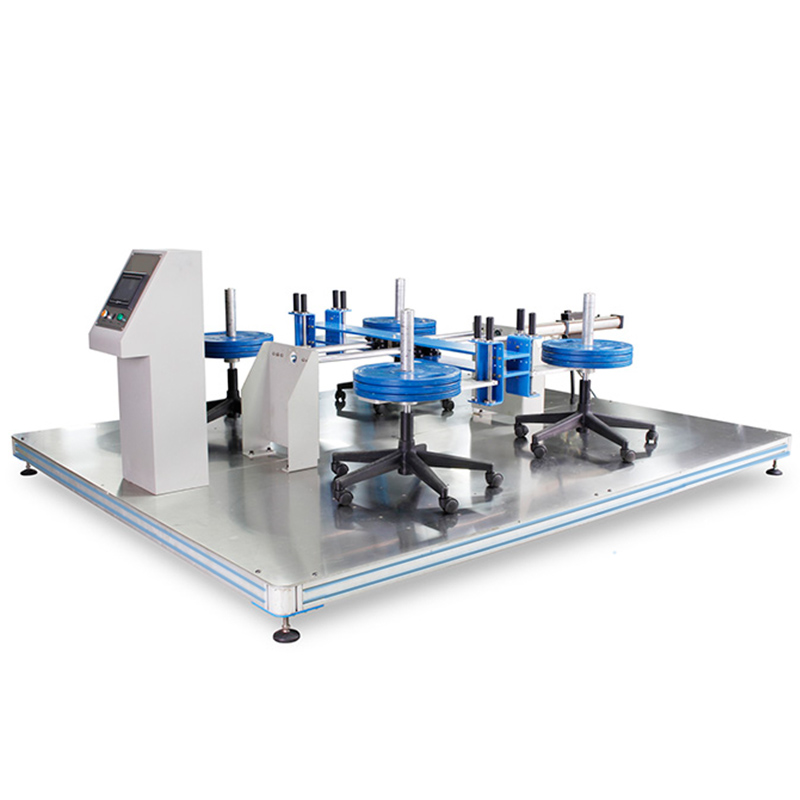

| name | Chair Caster Durability Testing Machine-Single Station | Chair Caster Durability Testing Machine-Double Station | Chair Caster Durability Testing Machine – Four Stations | ||
| size | 2870*1140*930mm | 3140*1120*860mm | 2965*2400*1090mm | ||
| weight | 336Kilogram | 628Kilogram | 1164Kilogram | ||
| picture |  |
 |
 |
||
| Features | 1. Simple bolt-type sample clamping structure, so that the tested sample is not constrained by external force in the vertical direction. 2. The design of the “bow”-shaped drag frame not only adapts to the loading of the seat surface of different heights, but also makes the casters not constrained by external forces in the vertical direction when passing obstacles, which more realistically simulates the actual use situation. 3. Each test station corresponds to an independent counter, and each counter can be “cleared” at any time without affecting the work of other counters. 4. The touch screen outputs and inputs test parameters, displays the test speed in real time, and has a stop/power-off memory function. 5. Easy Air Bar Removal Structure / Makes removing the air bar from the bracket a breeze.6.2.4The millimeter thick stainless steel covers the surface of the test platform, which is wear-resistant, rust-free and easy to refurbish. | ||||
| parameter | 1.diameter63mm cylinder, adjustable stroke:0-900 mm. 2.Barrier lateral coverage width per test position:860 mm.3.Air pressure:>0.5MPa;flow:Z800 L/min; air source needs to be filtered and dried. 4.power supply:AC220V 50/60Hzz 2A. | ||||
| important accessories | Accessory name | brand | quantity | Origin | use/function |
| touch screen | Wei Luntong | 1piece | China | HMI | |
| MCU | Wecan (factory) | 1set | China | Core originals, program storage and operation | |
| cylinder | AirTAC | 1piece | China | actuator, output pressure | |
| The electromagnetic valve | AirTAC | 1piece | China | Drive cylinder in reversing motion | |
| Standard accessories | Numbering | name | quantity | use | |
| WT-BFM-17+A01 | Loading weight support frame | number of stationshusband1set | Support structure and loading broken code | ||

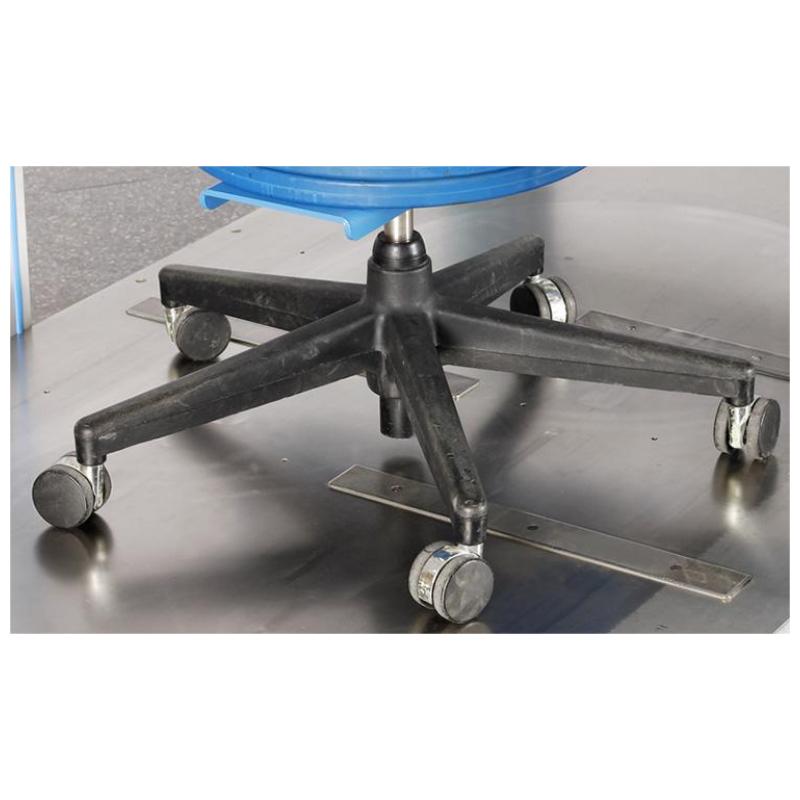

| WT-BFM-17+A02 | American Standard Caster Barrier | number of workers3set | For star base, including screws and tools. | ||
| WT-BFM-06-01 | 25Pound lagging loading broken code | number of stations*1set | Weight per set270lb | ||
| Non-standard accessories | WT-BFM-17+B01 | Table cabinet type caster pallet fixture | number of stations*1set | Clamping fixture | |
| WT-BFM-17+B02 | European Standard Caster Barrier | number of stations*1set | Obstacles that meet standard requirements. | ||
| WT-BFM-17+B03 | American StandardIIICaster-like obstacles | number of stations*1set | Obstacles that meet standard requirements. | ||
