| Brand Name | Wecantester |
|---|---|
| Place of Origin | |
| Standards | BIFMAX 5.1-2017, QB/T 2280-2016 |
 |
||||||
| topic | standard | chapter | Chapter title | |||
| standard | QB/T 2280-2016 | 6.6.7 | Base static load | |||
| BIFMA X5.1-2017 | App C | Base Test – Static | ||||

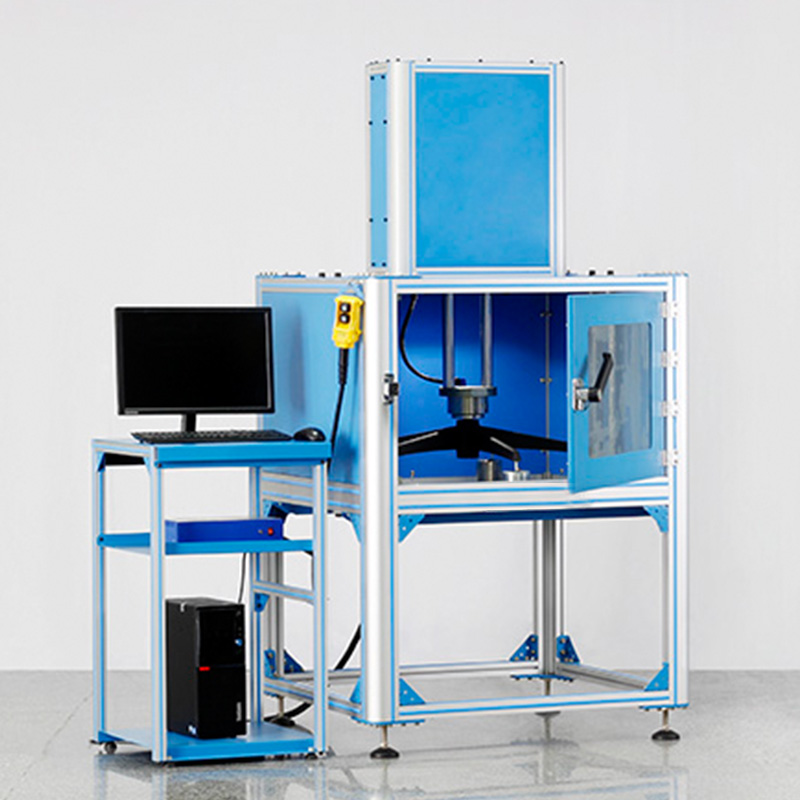

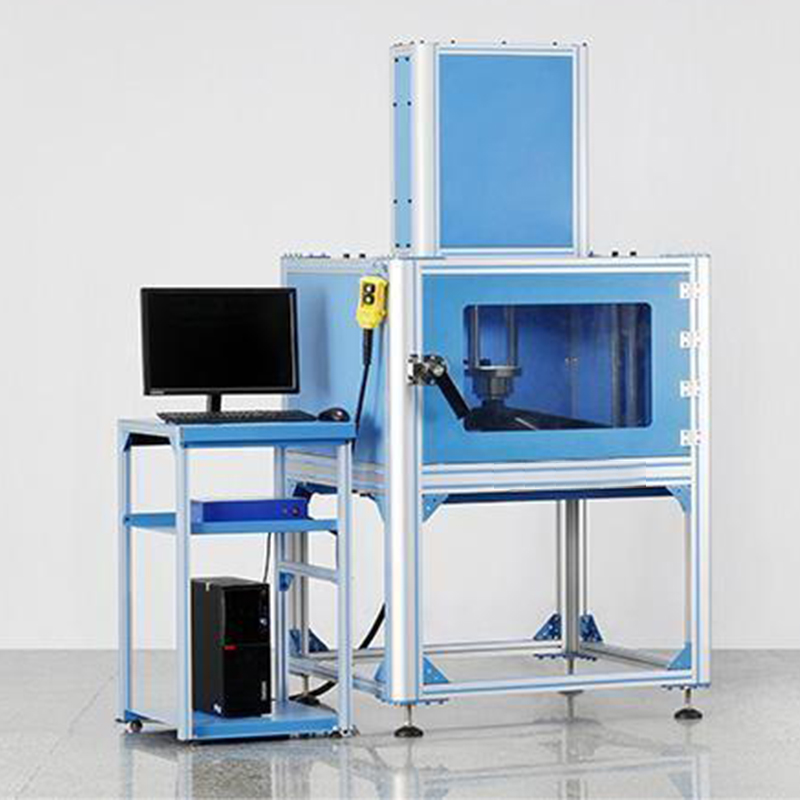

| parameter | 1.Output rated force:2500Kilogram force (can be produced according to customer requirements);precision+/-0.05%FS . 2.Effective bearing area of the test room:820*900mm (allowable diameter750 mm of star foot). 3.Pressure stroke range (i.e. the height of the pressure head from the support surface):30-400 mm. 4.hostsize950*980*1920mm, console:500*500*1300mm, net weight:460 Kilogram. 5.power supply:220VAC, 0.75kilowatt. | |||||
| Features | 1. The ancient design of the double-layer armored plate in the test room prevents the test sample from breaking and splashing and hurting the operator; 2.The test room is equipped with a lighting source, and the door panel is equipped with a transparent observation window(10mm tempered glass), it is convenient to observe and photograph the deformation process of the tested sample. 3.Universal foot pad equipment, so that the minimum distance between the equipment and the ground is greater than80mm for easy adjustment of equipment level and forklift handling. | |||||
| Control System | 1. The material testing machine servo closed-loop control system is adopted. 2. With a desktop computer, it can input, output and record test parameters, graph curves and generate editable reports. 3.It has overload automatic shutdown protection function, breakpoint automatic shutdown function and upper and lower limit protection function. | |||||
| important accessories | Accessory name | brand | Origin | quantity | use/function | |
| computer | HP or Lenovo | China | 1tower | HMI | ||
| operating system | Microsoft | U.S. | 1set | genuine operating system | ||
| MCU | Wecan (factory) | China | 1set | Core originals, program storage and operation | ||
| AC Servo Motor | Matsushita | China | 1set | power | ||
| Precision Ball Screw | TBI | China | 2piece | Transmission main accessories | ||
| Pull pressure sensor | Keli | Ningbo | 1piece | Convert the tensile force value into an electrical signal | ||
| Standard accessories | WT-BFM-07+A01 | Support pads with support columns | 1set | Simulate casters and elevate test samples. | ||
| WT-FIX-08 | Original HP or Lenovo desktop computer | 1set | HMI | |||
| WTFIX-10 | Simple computer console | 1tower | Placing computers and peripherals | |||
| WT-FIX-11 | Genuine computer operating system | 1set | operating system | |||
