| Brand Name | Wecantester |
|---|---|
| Place of Origin | |
| Standards | BIFMA X5.4-2020, BIFMAX 5.1-2017, BS EN1728:2012, QB/T 2280-2016 |
| topic | standard | chapter | Chapter title | |||
| standard | QB/T 2280-2016 | 6.6.11 | Seat Rotation Durability | |||
| BIFMA X5.1-2017 | 8 | Swivel Test -Cyclic | ||||
| BIFMA X5.4-2020 | 19 | Swivel Test -Cyclic | ||||
| BS EN1728:2012 | 7.11&7.13 | Swivel test & Castor and chair base durability | ||||

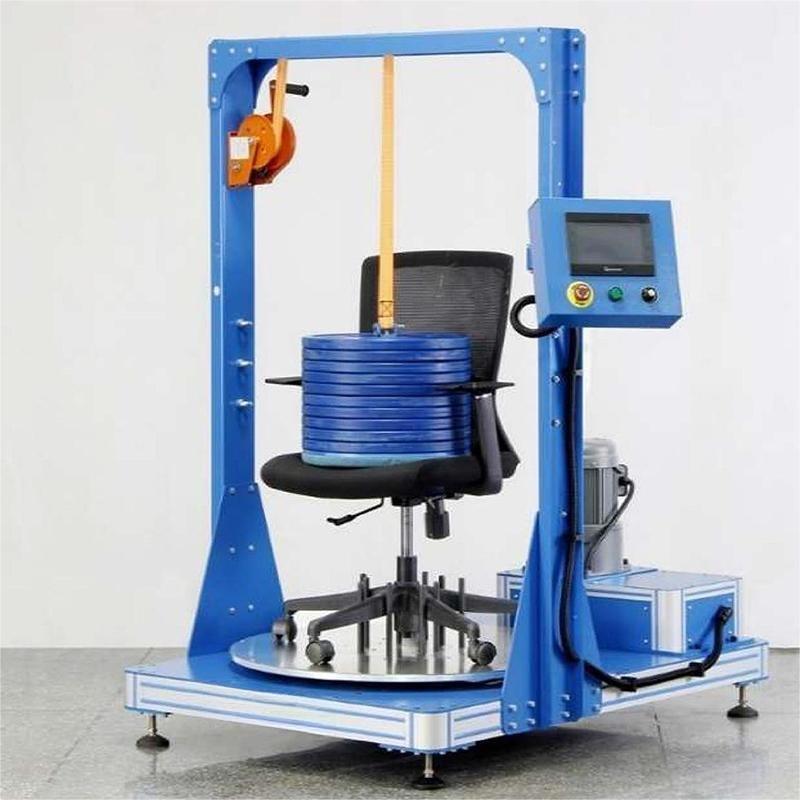

| Features | 1. Suitable for multi-standard seat rotation durability test requirements; single-direction or forward and reverse alternate rotation modes of the rotating platform can be selected. 2. In forward and reverse mode, any angle reversal and reversal dwell time can be set. 3. The seat surface is loaded with shy code, and the broken code is loaded by hand winch release or hoisting. 4.Simple clamping, automatically find the center of rotation, without any auxiliary tools. | |||||
| control | 1. PLC Control, touch screen to input test parameters and output test results. 2.The AC spur gear motor drives the test platform, and is equipped with an angle encoder to monitor and control the rotation of the test platform. | |||||
| parameter | 1.Adjustable rotation speed:5~15rpm; programmable number:1~999999turn; the dwell time of the commutation gap can be set:0~10 second. 2. With stop/power-off memory function to avoid loss of test data. 3.Maximum allowable specimen size: diameter750mm of star foot, seat height:350-800 mm. 4.Dimensions:1420*1100*1720mm, net weight:336kg; Power: 220VAC,800watt. | |||||
| important accessories | Accessory name | brand | quantity | Origin | use/function | |
| touch screen | Wei Luntong | 1piece | China | HMI | ||
| PLC | mitsubishi | 1set | China | Core originals, program storage and operation | ||
| Inverter | Delta | 1tower | China | Adjust motor speed | ||
| Gear reducer motor | city-state | 1tower | China | power output | ||
| Standard accessories | Numbering | name | quantity | use | ||

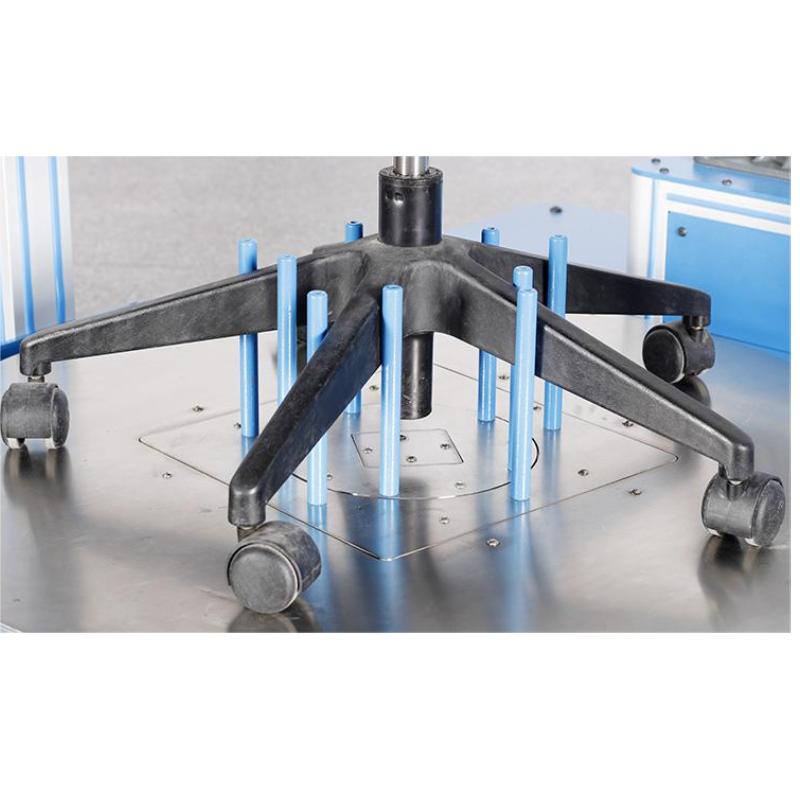

| WT-BFM-09-A01 | Centering Chuck Assembly | 1set | Make the center of the sample and the center of the rotating platform overlap | |||
| WT-BFM-09-A02 | American Standard Seat Loading Broken Code Components | 250lb | American Standard Rotary Test Seat Loading | |||
| Non-standard accessories | WT-BFM-09+B01 | European Standard Caster Durability Test Auxiliary Fixture | 1set | Limit the horizontal degrees of freedom of the sample | ||
| WT-BFM-09+B02 | European coordinate surface loading broken code group | 1set | BSThe front loading of the standard seat is broken. | |||
