| Brand Name | Wecantester |
|---|---|
| Place of Origin | |
| Standards | Customized on request |
 |
||||

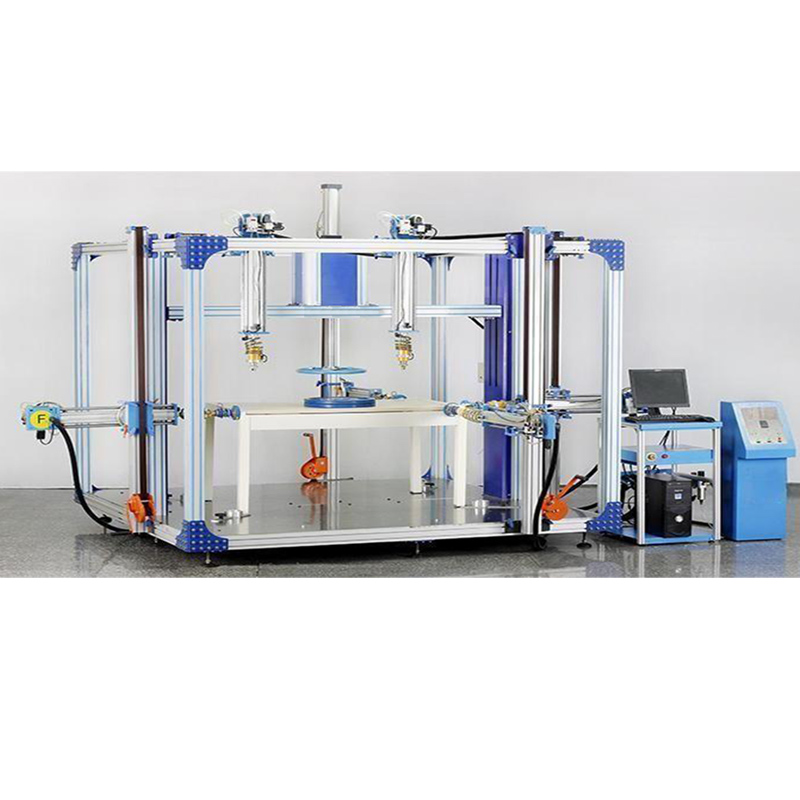

| application | 1. This equipment is a comprehensive mechanical testing machine for furniture, which can be customized by customers according to their own product categories. 2.It is mainly designed and manufactured for the structural strength and durability test of furniture products. | |||
| components | Cylinder assembly | Load components horizontally4Group | vertical loading components2Group | Shock assembly1Group |
| cylinder | 1. D40*500-S 1 branch 2. D63*500-S3branch | 1. D63*500-S 1 branch 2. D80*500-S 1branch | D80*350-S1branch | |
| force control | closed loop | open loop | ||
| composition | Pull pressure sensor + axis does not rotate cylinder + pneumatic proportional valve + single chip computer + computer | Electromagnet + cylinder | ||
| output force | diameter40cylinder: 100-600Ndiameter63cylinder:300-1500N | diameter63cylinder:300-1500Ndiameter80cylinder:500-2500N | maximum:400lb | |
| range of movement | Move up and down along the column:400-1500mm move left and right along the frame:+/-1000mm; components can be moved back and forth:+/-260Rotation angle of mm components:0-90Spend; | move horizontally along the frame: +/-750mm moves horizontally along the frame: +/-700mm moves up and down along the beam:+/-260mm; | Sandbag impact height: 1200mm; move left and right laterally along the mounting beam:+/-600mm | |
| Other parameters | 1. Dimensions and Net Weight: TBD. This product is a non-standard customized product and needs to be modified according to the customer. 2.Air source: Air pressure:>0.5MPa;flow:2800 L/min; air source needs to be filtered and dried. 3.Power supply, power:220VAC, 200Wo | |||
| Features | 1. Aluminum alloy profile frame structure. All loading components can be moved and fixed along the frame aluminum profile to achieve the best loading position and state; 2. All the cylinder parts of the loading force use the shaft core hexagonal non-rotating cylinder to keep the loading pad from rotating and loading; 3. The vertical cylinder assembly is installed on the “base” that can slide horizontally freely, and will automatically translate and maintain a vertical state when subjected to lateral force; 4. Simple operation, one person can quickly complete the sample clamping without any tool assistance; 5.Universal foot pad equipment, so that the minimum distance between the equipment and the ground is greater than80mm, easy to adjust the equipment level and forklift handling; | |||

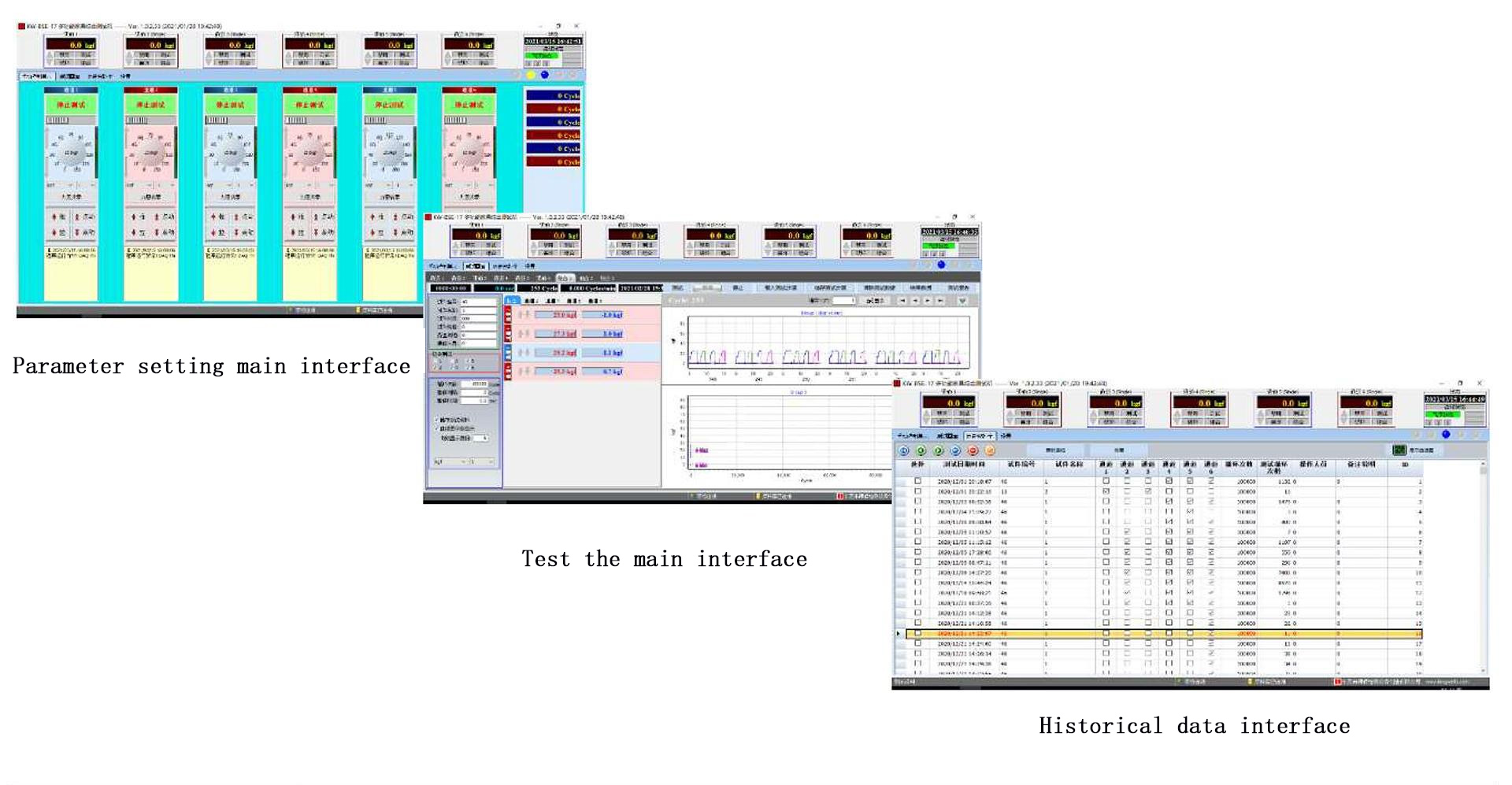

| control | 1. Eight-channel pneumatic servo closed-loop control system, developed by our factory, has independent property rights. 2. This device actually uses six channels. You can select each channel to work in a separate working mode or some (or all) channels in a linked working mode; 3. Use computer to input test parameters, and output or store test results. The test settings are expanded with rich and beautiful multi-interfaces, expressed in charts and curves, and all data can be edited for secondary editing or report output; 4. The system has tracking and display force-time curve, countdown of each loading segment, overload output alarm, etc. 5.The system has stop/power off memory function, low air pressure detection function/breakpoint shutdown function. | |||
| important accessories | Accessory name | brand | Origin | use/function |
| computer | Lenovo or HP | China | HMI | |
| MCU(8aisle) | Wecan (factory) | China | Core originals, program storage and operation | |
| Gas-electric proportional valve | SMC | Japan | Convert electrical signals to air pressure signals | |
| Pull pressure sensor | AiLogics (USA) | China | Convert the tensile force value into an electrical signal | |
| signal transmitter | Wecan (factory) | China | electrical signal processing | |
| Cylinder (hexagonal shaft) | SMC | Hongkong | Actuator, output pull pressure | |
| Standard accessories | Numbering | name | quantity | use/function |
| WT-FIX-08 | Original HP or Lenovo desktop computer | 1set | HMI | |
| WT-FIX-10 | Simple computer console | 1tower | Placing computers and peripherals | |
| WT-FIX-11 | Genuine computer operating system | 1set | operating system | |
| WT-BSE-01 | Big Butt Loading Pad (Hardwood) | 2piece | Seat loading | |
| WT-BSE-03 | Little Butt Loading Pad | 2piece | Seat Surface Alternate Loading Application | |
| WT-BSE-04 | normal loading pad | 4piece | ||
| WT-BSE-05-FP | Seat Back Loading Pad | 2piece | backrest loading | |
| WT-BFM-03-FP | BIFMASeat Back Loading Pad | 2piece | backrest loading | |
| WT-BFM-02 | Seat impact sand bag | 1set | ||
| WT-BFM-31 | Chair anti-rotation baffle | 1set | ||
| WT-FIX-09 | Seat back joint loading through frame | 2piece | Avoid seat and backrest loading interference | |
| WT-BSE-02-02 | Standard stop-Yfont | 4piece | Sample positioning | |
| Non-standard accessories | WT-BFM-06 | Seat surface load code assembly | 1set | American standard surface loading |
| WT-FIX-07 | Load extension rod | Npiece | extended loading | |
| purchase reference | 1. According to the different product lines and uses of furniture customers, our factory has developed various forms of frame-type furniture comprehensive testing machines; 2. Among them, WT-BSE-17 is more suitable for stool/table and cabinet product testing; 3. Among them, WT-BSE-17 -BSE-18 is more suitable for table, cabinet and single and bunk bed product testing; 4. WT-BSE-19 is more suitable for outdoor furniture product testing; 5. WT-BSE-20 is more suitable for table, cabinet and Single-layer bed product testing; 6. Of course, we can also completely re-plan and design the furniture mechanics comprehensive experimental machine according to the customer’s requirements. | |||
