| Brand Name | Wecantester |
|---|---|
| Place of Origin | |
| Standards | BS EN1728:2012, BS EN1730:2012, GB/T 10357.3-2013 |
| topic | standard | chapter | Chapter title | ||
| standard | GB/T 10357.3-2013 | 4.12 | Seat impact test | ||
| BS EN1730:2012 | 6.6.3 | Vertical impact test for all other table tops | |||
| BS EN1728:2012 | 6.24 | Seat impact test | |||

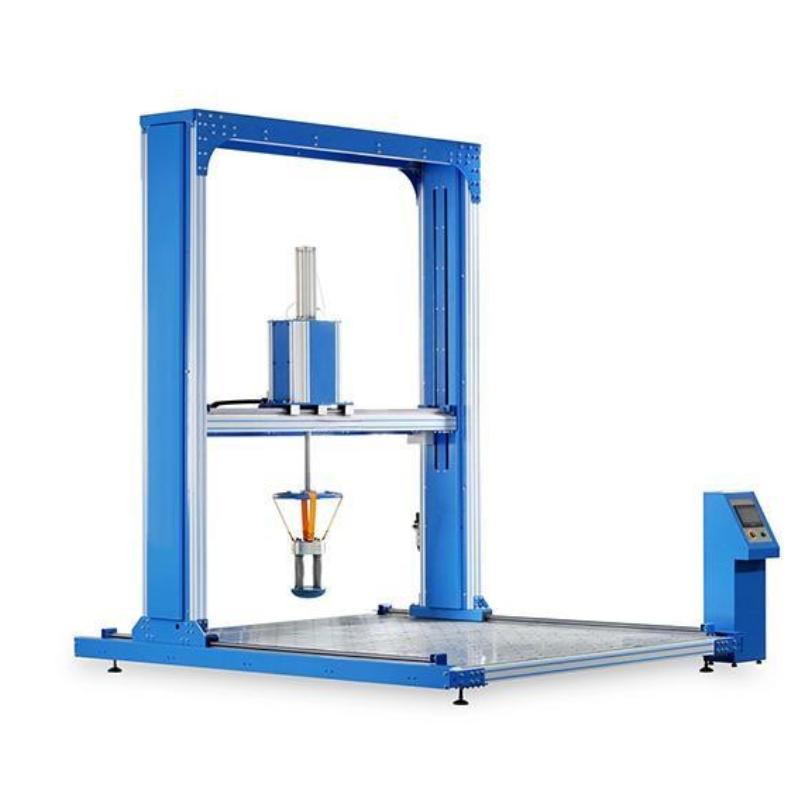

| application | Compatible with impact testing of all furniture and all international standards, including: seating, tables, beds (including bunk beds) testing requirements. | ||||
| Features | 1.Testbed Coverage2.4mm stainless steel plate, arrangement spacing150mm arranged in a matrix to hold the sampleM10 Threaded hole. 2.Easy to operate. Shock assemblies can be found atX,Ymove in the directionZThe height is electrically adjusted in the axial direction and can be locked in any position. | ||||
| control | 1. PLC+ Touch screen combined control, with stop/power off memory function to avoid loss of test data. 2. Optional manual or automatic control. Manual control is mostly used for strength testing or machine adjustment, and automatic control is mostly used for durability testing. 3.Optional shock release mechanism assembly for free fall or slow release loaded working modes. 4.With breakpoint shutdown detection function. | ||||
| parameter | 1.Effective size of work surface: long1840mm, width1460 mm; (Note: the area covered by the center of the shock assembly). 2.Effective impact assembly height:2438 mm. 3.Maximum shock stroke:350 mm; (customer customization is acceptable). 4.Shock assembly maximum load:50 Kilograms (customized customization is acceptable). 5.Device body size:2830*2510*3700mm; net weight:1080 Kilogram. 6.Air source: greater than or equal to0.5Mpa,Traffic is not small400 L/min.. 7.power supply:220VAC5A. | ||||
| Standard accessories | Numbering | name | quantity | use | |
| WT-BSE-11-GB | GB Coordinate Impactor | 1piece | Seat punches that meet the national standardhitter. | ||
| Non-standard accessories | WT-BFM-02-WT | diameter16inch impact test sand bag | 1piece | American StandardBIFMAseat impact testsandbag. | |
| WT-BFM-57 | American Standard Coordinate Test Loading Sponge | 2piece | American StandardBIFMASeat impact test loaded sponge. | ||
| WT-BSE-11-BS | European standard coordinate impactor | 1piece | Seat impactor conforming to European standard. | ||
| WT-BSE-22 | Seat impact pendulum | 1set | Impact pendulum in accordance with national and European standardscomponent. | ||
| WT-FIX-11 | Chair drop test lifting fixture | 1set | Meet the requirements of the national standard chair drop testcomponent. | ||
