| Standards | BIFMA X5.5-2021, BIFMA X5.6-2010, BIFMA X5.9-2019, EN16122:2012 |
|---|---|
| Brand Name | Wecantester |
| Place of Origin |
| topic | standard | Chapter | Chapter title | ||
| standard | EN16122:2012 | 7.1.5 | Durability of pivoted doors | ||
| BIFMA X5.5-2021 | 17.6 | Wear and Fatigue Test for Hinged, Horizontally Sliding, and Tambour Doors | |||
| BIFMA X5.6-2010 | 11.6 | Wear and Fatigue Test for Hinged, Horizontally Sliding, and Tambour Doors | |||
| BIFMA X5.9-2019 | 17.6 | Wear and Fatigue Tests for Hinged, Horizontally Sliding and Tambour Doors | |||

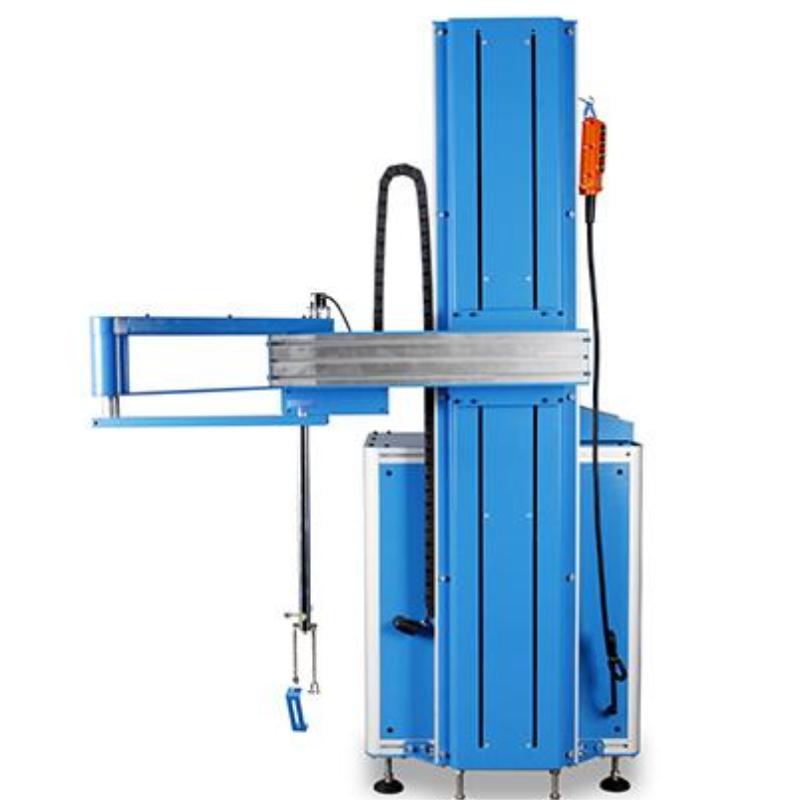

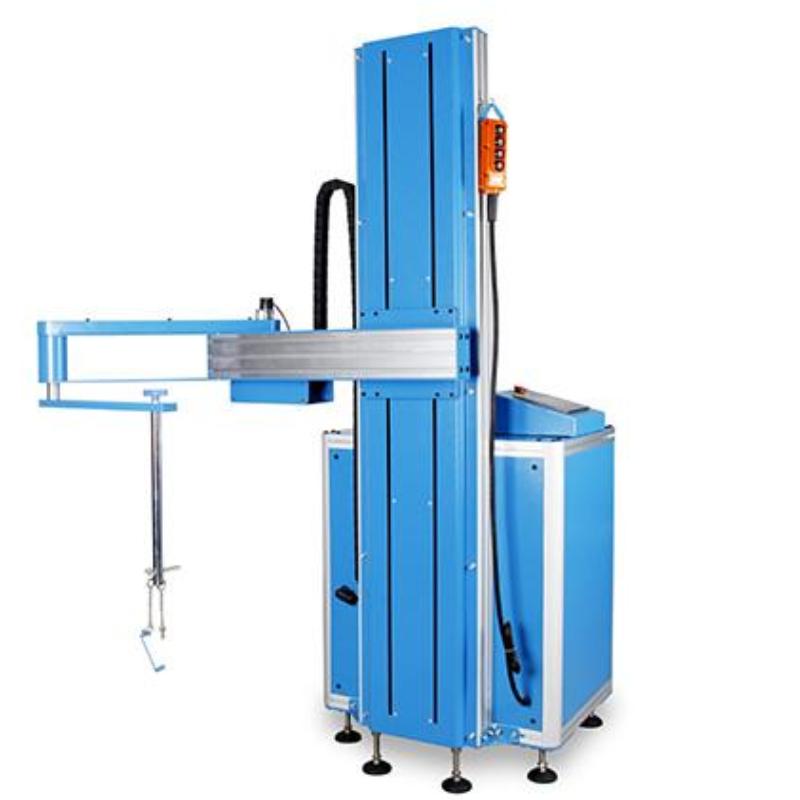

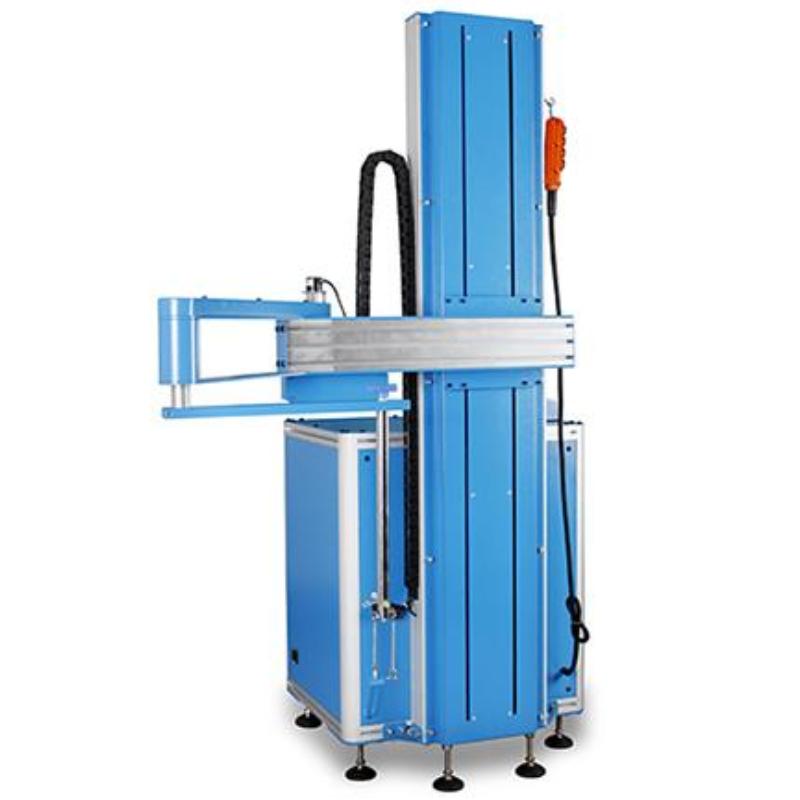

| Features | 1. Servo motor drive, directly connected to the angle encoder, programmed test process. 2. Manually operate the simulated load to confirm the start and end points. 3. It has the function of reversing buffer and deceleration, and the reversing is stable and reliable.4 Programmatically set sub-speed loading process. 5. The horizontal loading height is adjusted electrically, and the position is self-locked at any position. 6.Universal foot pad equipment, so that the minimum distance between the equipment and the ground is greater than80mm for easy adjustment of equipment level and forklift handling. | ||||
| control | 1. Servo control, using Panasonic’s nine servo motors and servo drivers. 2. Input and output test parameters through the Weillon touch screen. 3.With stop/breakpoint memory function to avoid loss of test data. | ||||
| parameter | 1.Rotation angle can be set:0-360degrees; adjustable speed:5-15RPM. 2.Adjustable horizontal loading height:200-1600 mm. 3.Configurable counter:6 Bit, the reset button has misoperation protection. 4.X-shaped size:1320*1150*1970mm, net188.6 Kilogram. 5.power supply:220VAC 3AO | ||||
| Standard accessories | Numbering | name | quantity | use | |
| WT-BFM-25+A01 | Hinged door durability testing machine loading rank code (2 husband1KGS) | 1set | Hinge door load counterweight, standard requirement | ||
| Non-standard accessories | WT-BFM-25+B01 | AType standard hinge door and supporting structure | 1set | Hinged accessories durability test standard door leaf and support frame | |
| WT-BFM-25+B02 | BType standard hinge door and supporting structure | 1set | |||
