| Brand Name | Wecantester |
|---|---|
| Place of Origin | |
| Standards | GBT 10357.3-2013 ,BIFMA X5.4-2020 Public and Lounge Seating" BS EN 1728:2012 |

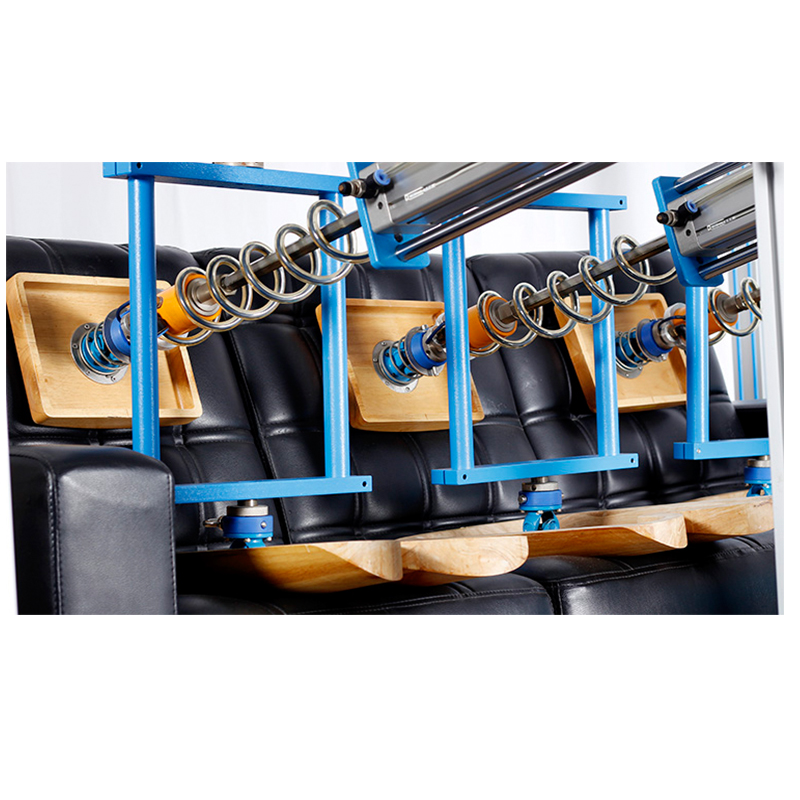

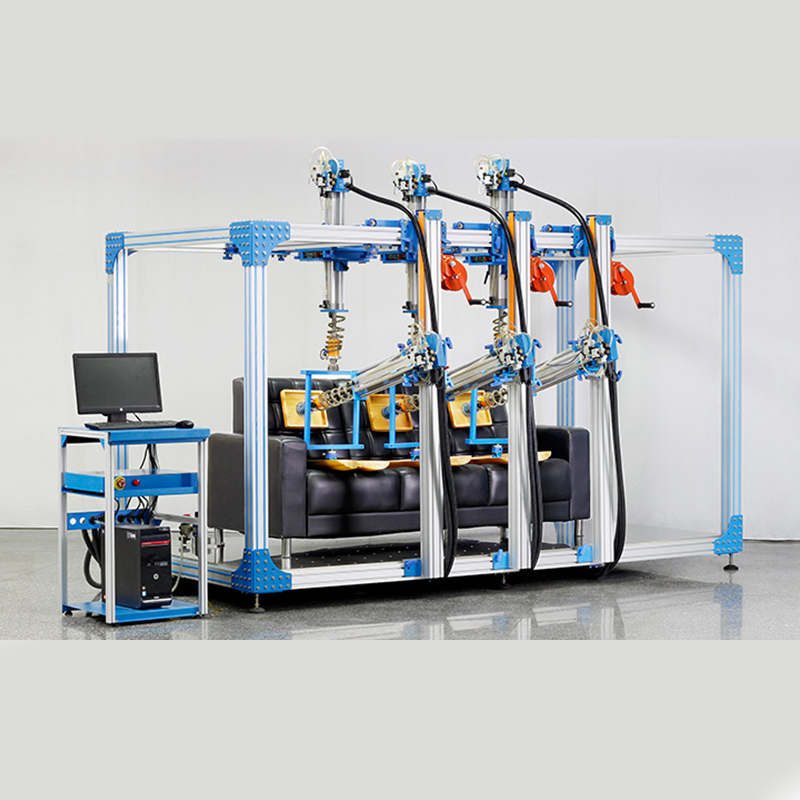

WT-BFM-38 Multi-station seat comprehensive testing machine
| Topic | Standard | NO | Chapter title |
| Standard | GBT 10357.3-2013 Furniture mechanical properties test No.3Section: Chairs and Stools Strength and Durability | 4.3 | Seat surface and seat back static load test |
| 4.6 | Vertical downward static load test of handrail | ||
| 4.7 | Seat Surface Durability Test | ||
| 4.8 | Seat Back Durability Test | ||
| BIFMA X5.4-2020 Public and Lounge Seating | 5&6 | Backrest Strength Test – Horizontal & Vertical -Static | |
| 7&8 | Backrest Durability Test – Horizontal & Vertical -Cyclic | ||
| 10 | Arm Strength Test – Vertical -Static | ||
| 22&23 | Tablet Arm Load Ease Test – Cyclic & Load Test -Static | ||
| BS EN 1728:2012 | 6.4&7.3 | Seat static load and back static load test | |
| 6.5&7.4 | Seat Front Edge Static Load | ||
| 6.6 | Vertical load on back rests | ||
| 6.7 | Horizontal forward static load test on back rests | ||
| 6.11&7.5&7.6 | Arm rest downwards static load test | ||
| 6.17&7.9 | Combined seat and back durability test | ||
| 6.19&7.9 | Durability test on seating with a multi-position back rest | ||
| purchase reference |
1.European and American standardsX5.4required, the multi-seat seat back joint durability test is only for2 seats. 2.This equipment can also perform combined seatback tests on several single seat chairs at the same time, so some customers (especially third-party laboratories) for Pursue small footprint and high efficiency and purchase multiple sets of seat-back joint testing machines; 3.This equipment is designed as a comprehensive testing machine, mainly forBIFMAandBS ENDesigned and manufactured for the strength and durability test of the sofa; |
||
| parameter | mark | Cylinder Specifications | Output force range | Installation location | Remark | |||
| A&C&E | D80*500-S | 500-2500N | top surface, vertical loading | Load height from platform:500-1300mm | ||||
| B&D&F | D63*500-S | 300-1500N | side, side loading | 1.Adjustable inclination0-90 Spend 2.Adjustable horizontal loading height400-1500mm | ||||
| 1.X-shaped size:1540*3030*2100,,weight:465 Kilogram 2.Air source: air pressure should be greater than or equal to0.5MPa;flow greater than1200 L/min; air source needs to be filtered and dried. 3.power supply:220VAC, 50W. | ||||||||
| Features | 1. Framed. All cylinder loading assemblies can be adjusted and fixed in position along the aluminum alloy profiles of the frame structure. 2.All cylinder loading components use a hexagonal non-rotating cylinder to keep the loading pad from rotating and loading; 3.All cylinder loading assemblies can be adjusted to the left and right, fore and aft and up and down positions according to the test needs to achieve the best position state; 4.All cylinder loading assemblies are pneumatic servo closed loop loading control; 5. The vertical cylinder assembly is installed on a “base” that can slide horizontally, and when subjected to lateral force, it will automatically translate and maintain a vertical state; 6.Universal foot pad equipment’MakeThe minimum distance between the equipment and the ground is greater than80 mm, easy to adjust the equipment level and forklift handling; 7.Simple operation, one person can quickly complete the sample clamping without any tool assistance; | |||||||
| Control | 1. The system uses a computer to input test parameters, and output or store test results. 2.The eight-channel pneumatic closed-loop single-chip control system developed by our factory is adopted. The test settings are expanded with rich and beautiful multi-interfaces, expressed in charts and curves, and all data can be edited or output in reports; 3. Check to control the cylinder output force or displacement test function. With tracking, display force-time curve, countdown of each loading segment, overload output alarm, etc. 4. You can check all cylinder loading components to do independent work mode or some (or all) linked work mode; 5.The system has stop/power off memory function, low air pressure detection function, and breakpoint shutdown function. | |||||||
| Important accessories | Main Parts | brand | Origin | Function | ||||
| computer | Lenovo or HP | China | HMI | |||||
| MCU(8aisle) | Wecan (factory) | China | Core originals, program storage and operation | |||||
| Gas-electric proportional valve | SMC | Japan | Convert electrical signals to air pressure signals | |||||
| Pull pressure sensor | AiLogics (USA) | China | Convert the tensile force value into an electrical signal | |||||
| signal transmitter | Wecan(factory) | China | electrical signal processing | |||||
| Cylinder (hexagonal shaft) | SMC | Hongkong | Actuator, output pull pressure | |||||
| Standard accessories | Model | name | quantity | use | ||||
| WT-BSE-01 | Big Butt Loading Pad (Hardwood) | number of stationsTyping | Seat loading | |||||
| WT-BSE-05-FP | Seat Back Loading Pad | number of stationshusband1piece | backrest loading | |||||
| WT-FIX-09 | Seat back joint loading through frame | number of stationsBig1piece | Avoid seat and backrest loading interference | |||||
| WT-BSE-02-02 | Standard stop-Yfont | number of stationsBig2piece | Sample positioning | |||||
| WT-FIX-08 | Original HP or Lenovo desktop computer | 1set | HMI | |||||
| WT-FIX-10 | Simple computer console | 1tower | Place the battery and peripherals | |||||
| WT-FIX-11 | Genuine computer operating system | 1set | operating system | |||||
| Non-standard accessories | WT-BFM-03-FP | BIFMASeat Back Loading Pad | number of stations*1piece | backrest loading | ||||
| WT-BSE-03 | Little Butt Loading Pad | 2piece | Seat Surface Alternate Loading Application | |||||
| WT-BFM-06 | Seat surface load code assembly | number of stations*1set | American standard surface loading | |||||
| WT-FIX-07 | Load extension rod | Npiece | extended loading | |||||
