Office Chair Air Pressure Bar (Rod) Durability Tester

分类 Furniture Mechanics Machines 标签 WT-BFM-18

其他信息

topic	standard	Chapter	Chapter title
standard	GB/T 29525-2013	7.6	cycle life
	QB/T 2280-2016	6.10.4	cycle life
editm	WT-BFM-18-02		WT-BFM-18-04	WT-BFM-10

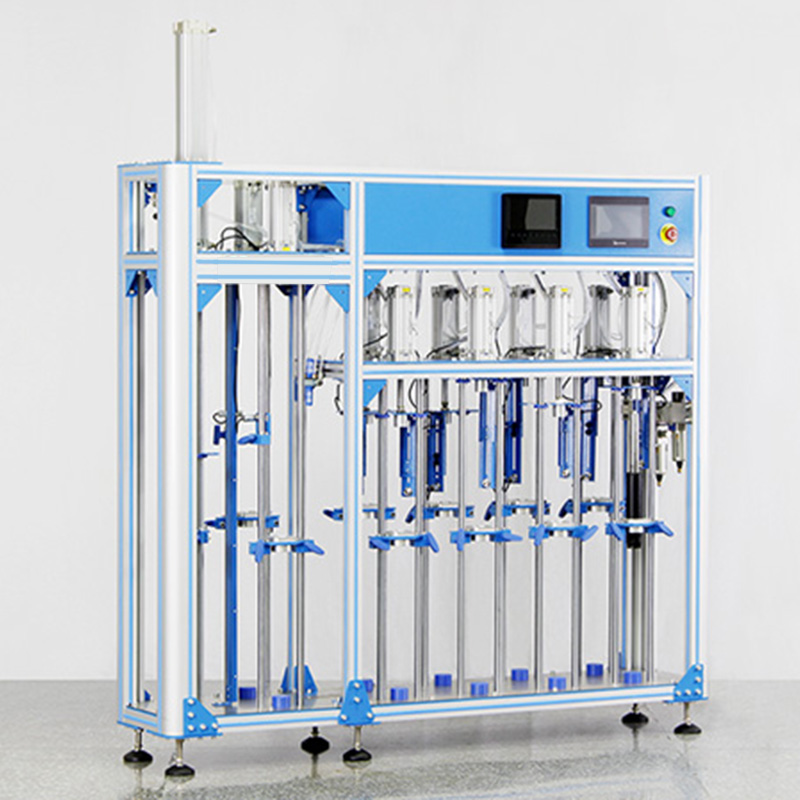

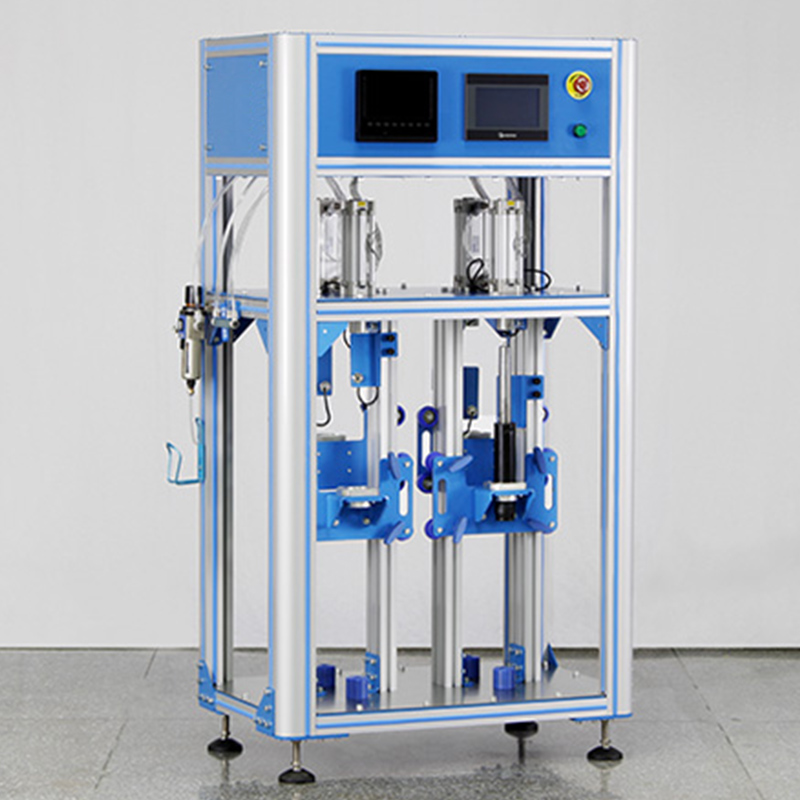

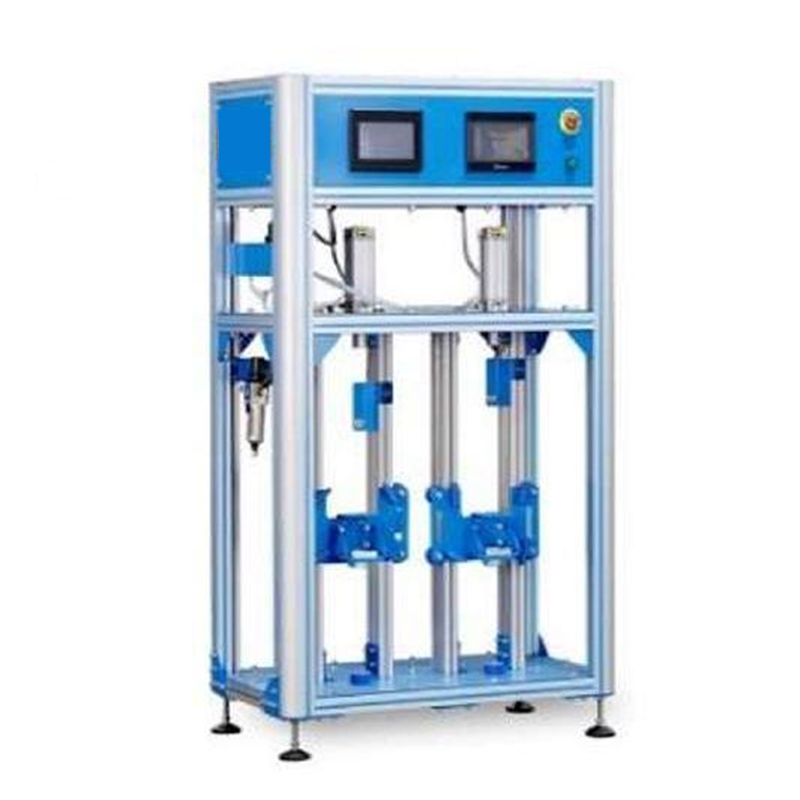

	Pneumatic Rod Durability Testing Machine-Double Station		Air Pressure Rod Durability Testing Machine – Four Stations	Pneumatic rod durability testing machine – ten stations
Features	1. Centrally controlled multi-channel detection system, each channel is equipped with independent drive cylinder and temperature sensor. 2. Touch screen output and output test parameters, with stop/breakpoint memory function, record and save test parameters. 3. Infrared non-contact temperature monitoring sensor detects the temperature change of the test sample. 4.Simple sample clamping structure design, no need for special tools, simple and convenient operation.
parameter	1.Pneumatic rod compression stroke:60mm..(60mm is the standard requirement/accept customer non-standard customization) .2using diameter50mm of cylinder load, stroke100mm, maximum output900N pressure. 3.Adjustable test speed:10 ~ 25 times/min. 4.Real-time recording and tracking of temperature profiles range:0-100°C,Display accuracy: ±1°C o 5.Air pressure:z0.5MPa;flow:Z800L/min; air source needs to be filtered and dried. 6.power supply220VAC, 2A.
size	8405401580mm		8405401580mm	17353801600mm
weight	144Kilogram		168Kilogram	246Kilogram
