| Brand Name | Wecantester |
|---|---|
| Place of Origin | |
| Standards | GB/T 38733-2020 ISO/TR 24496:2017 BS EN 1335-1:2020 ANSI/BIFMA X5.1-2017 |
application:

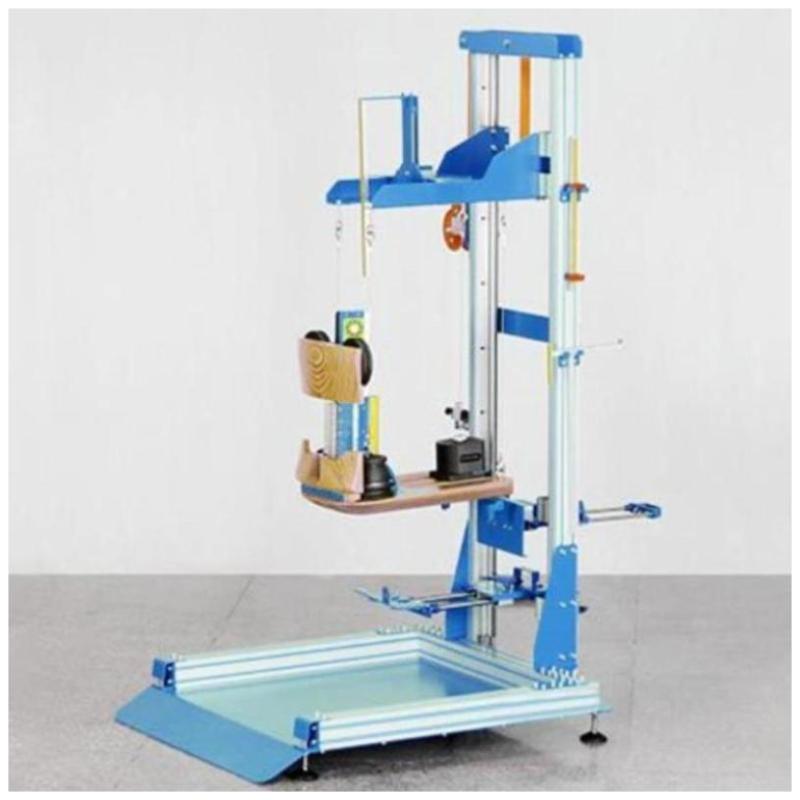

The simulated human body is loaded on the seat surface of the office chair, and the size of the chair is measured. Verify that the chair design meets ergonomic requirements.

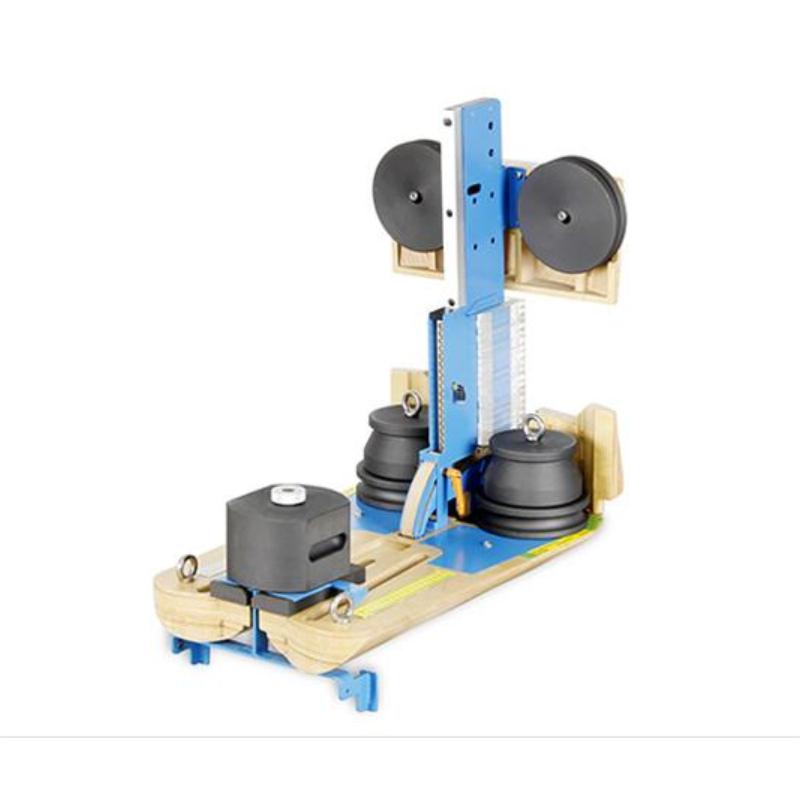

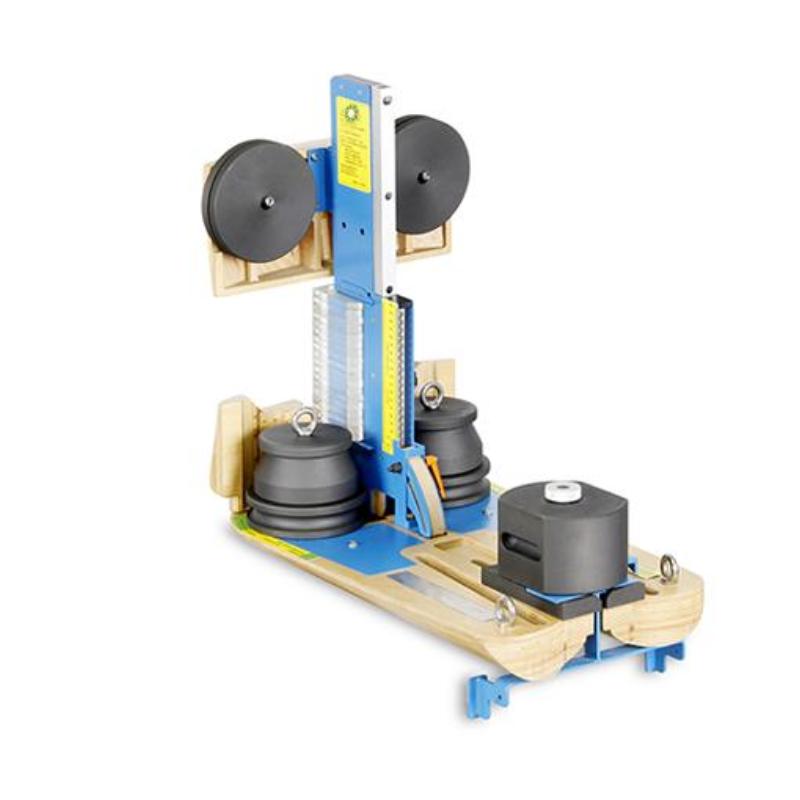

Office Chair Size Measurement Loading Fixture Office Chair CMD
| topic | standard | chapter | Standard/Chapter Title | ||
|
standard |
GB/T 38733-2020 | Office furniture office chair size measurement method | |||
| ISO/TR 24496:2017 | Office furniture — Office chairs — Methods for the determination of dimensions | ||||
| BS EN 1335-1:2020 | Office furniture — Office work chair
Part 1: Dimensions — Determination of dimensions |
||||
| ANSI/BIFMA X5.1-2017 | 2.5 | ISO CMD | |||
|
Features |

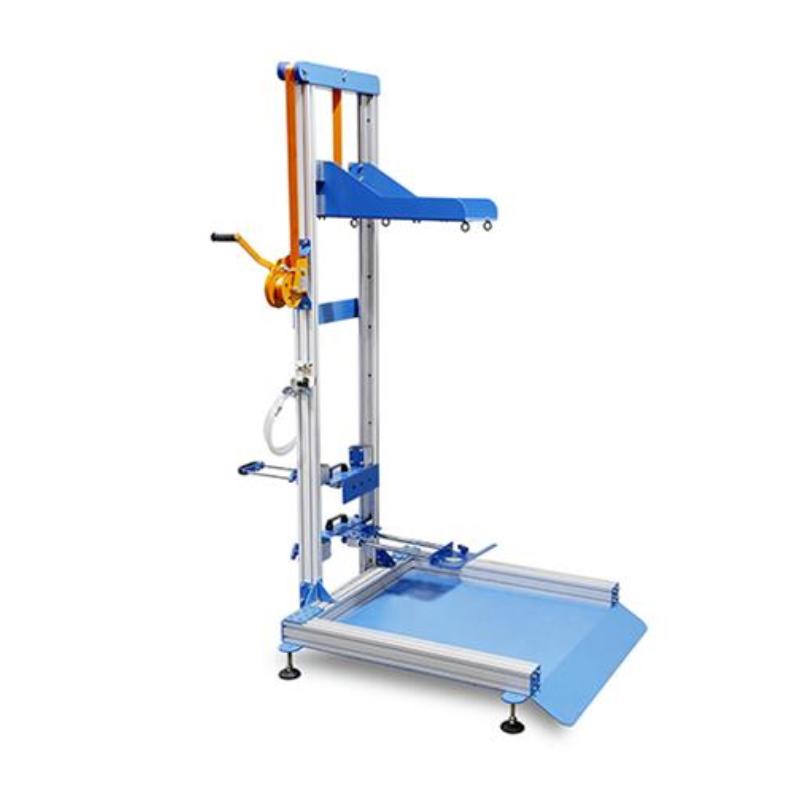

1. The height of the CMD is adjusted by a hand winch with a self-locking function, so that the CMD can stay at any height.
2. Independent sample support platform, the horizontal state of the support platform can be adjusted by adjusting the height of the feet. 3. Four stainless steel ropes are independently suspended at four points to support the fixture, so that the CMD can remain horizontal under the action of a horizontal force of 40 Newtons. 4. Universal foot pad equipment, so that the minimum distance between the equipment and the ground is greater than 80 mm, which is convenient for adjusting the level of the equipment and forklift handling. |
||||
|
parameter |
1. CMD size: 618*381*657mm, net weight: 64kg; (standard requirement).
2. Air source: not less than 0.3MPa. 3. The height of the bottom of the adjustable CMD seat from the test platform: 130-900 mm. 4. The effective width of the platform supporting the tested sample: 800 mm. 5. Overall dimensions of the whole machine: 1450*980*2085 mm, net weight (including CMD): 196 kg. |
||||
| Numbering | name | quantity | use | ||
|
Standard accessories |
WT-BSE-60-A01 | Backrest height measuring jig | 1 item | Measuring the backrest height | |
| WT-BSE-60-A02 | Headrest size measuring jig | 1 item | Fixture headrest size | ||
| WT-BSE-60-A03 | Support frame | 1 set | Support and Auxiliary Operations | ||
| WT-BSE-60-A04 | 40N weight | 1 item | horizontal loading | ||
| WT-BSE-60-A05 | handrail size gauge | 1 item | Measure the size of the handrail | ||
| Non-standard accessories | WT-BSE-60-B01 | Backrest arc radius measuring gauge | 1 item | Measure the backrest arc radius | |
| WT-BSE-60-B01 | Backrest arc radius measuring gauge | 1 item | Measure the backrest arc radius | ||
