| Brand Name | Wecantester |
|---|---|
| Place of Origin | |
| Standards | BIFMAX 5.1-2017, BS EN 1728:2012, QB/T 2280-2016 |
| topic | standard | chapter | Chapter title |
| standard | QB/T 2280-2016office furniture office chair | 6.63.1 | Seat static load |
| 6.6.8.1 | Seat Durability | ||
| 6.6.12.2 | Alternate load durability of seat surface bending left and right | ||
| BIFMAX 5.1-2017 General-Purpose Office Chairs – Tests | 10.4 | Front Corner Load-Ease Test – CycliconeOff-center | |
| 18 | Footrest Static Load Test – Vertical | ||
| 19 | Footrest Durability Test – Vertical – Cyclic | ||
| BS EN 1728:2012 Furnitureone SeatingoneTest methods for the determination of strength and durability | 6.8&6.9&7.4&7.8&8.3 | Foot & Leg rest & Seat front edge static load test, and Additional seat and leg rest static load test | |
| 6.13&6.14 | Vertical upwards static load on arm rests or writing surfaces | ||
| 6.21&7.12&8.5 | Durability test on back rest mechanism & Foot rest | ||
| 7.5&7.6&8.6 | Arm rest downward static load testonecentral & front | ||
 |
|||
| parameter | 1.Double Cylinder Loading, Cylinder63husband500mm,output force300-1500Newton; 2.Electrically adjust the beam to make the height range of the loading pad from the test platform:0-910mm, the beam can do90degree rotation; 3.Loading double cylinder centerline adjustable parallel spacing:200-700mm,Adjustable test speed:5~15Second-rate/minute; 4.Dimensions:1100*1420*1800mm, net weight:360Kilogram; 5.Air source: air pressure greater than0.5MPa,flow greater than1000Lift/minutes, the air source needs to be filtered and dried. 6.power supply:220VAC, 2AO | ||||

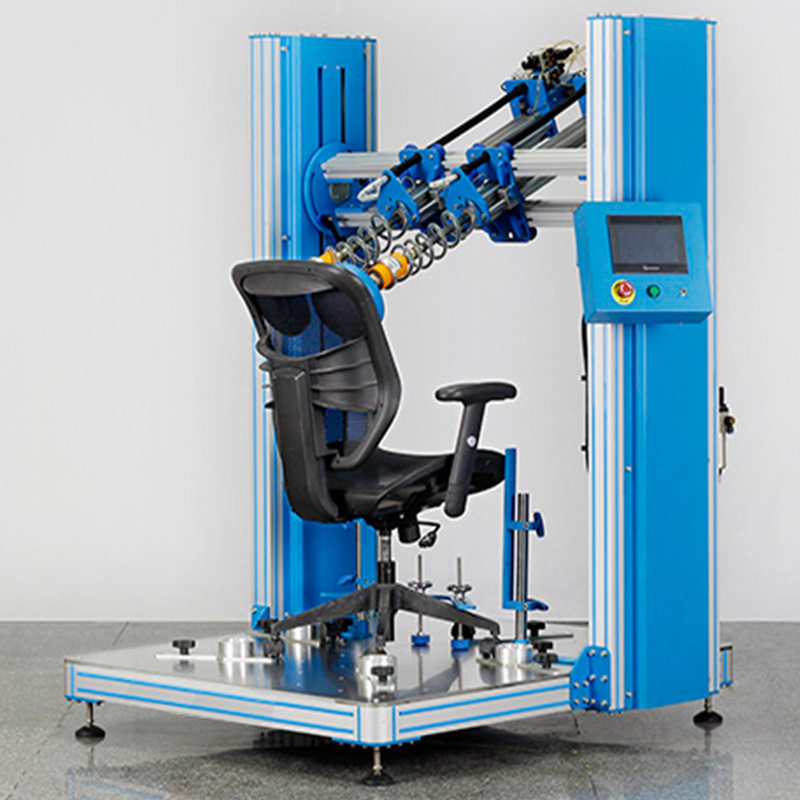

| Features | 1.This product is specially designed for the alternating durability test of the backrest of the European standard lounge chair and the front corner of the seat of the office chair; 2.The loading cylinder can be adjusted up and down (electrically), left and right, front and rear to adapt to different sizes of samples; 3.Universal foot support equipment/Make the minimum distance between the equipment and the ground greater than80mm,Easy to adjust equipment level and forklift handling; 4.Simple clamping structure design,All operations can be completed quickly by one person without any tool assistance; | ||||

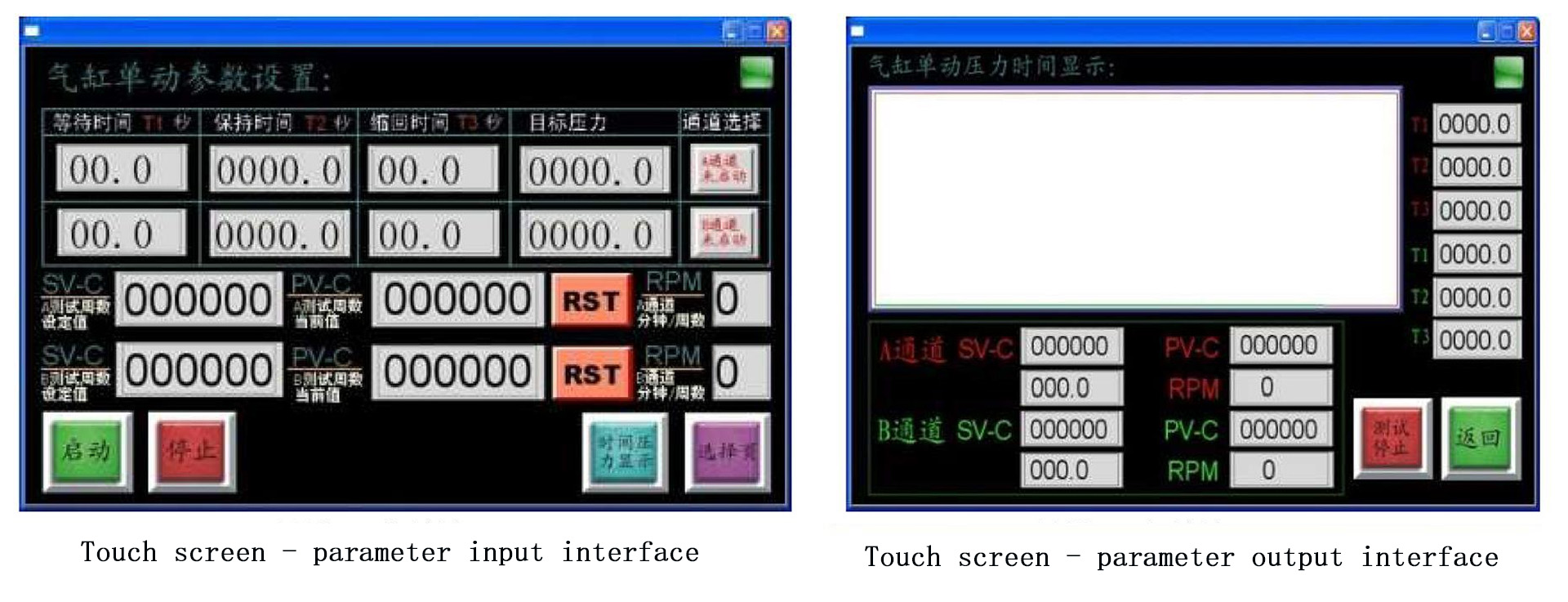

| control | 1.Touch screen to input test parameters and output test results; 2.It is controlled by the single-chip microcomputer developed by our factory. Optional control of cylinder output force or displacement, with tracking and display force-time curve,each loading segmentTiming, overload output alarm, etc. 3.In the selected cylinder output force control mode, the force is closed-loop control. That is: only when the current value of the loading force reaches the set value 95%(the background can be modified) to trigger the delay, and keep the current value within the set value±3%Internal fluctuations (standard requirements are±5%). 4.In the mode of selecting gas red output position, the displacement is controlled by moving the magnetic sensor attached to the surface of the cylinder; 5.The system has a stop/Power-off memory function, low pressure detection function and breakpoint shutdown function. | ||||
| important accessories | Accessory name | brand | quantity | Origin | use/effect |
| touch screen | Wei Luntong | 1piece | China | HMI | |
| MCU | Wecan (factory) | 1set | China | Core originals, program storage and operation | |
| Gas-electric proportional valve | SMC | 2piece | Japan | Convert electrical signals to air pressure signals | |
| Pull pressure sensor | Ailogics(U.S) | 2piece | China | Convert the tensile force value into an electrical signal | |
| signal transmitter | Wecan (factory) | 2piece | China | electrical signal processing | |
| cylinder | SMC | 2piece | China | Actuator, output pressure | |
| Standard accessories | Numbering | name | quantity | use | |

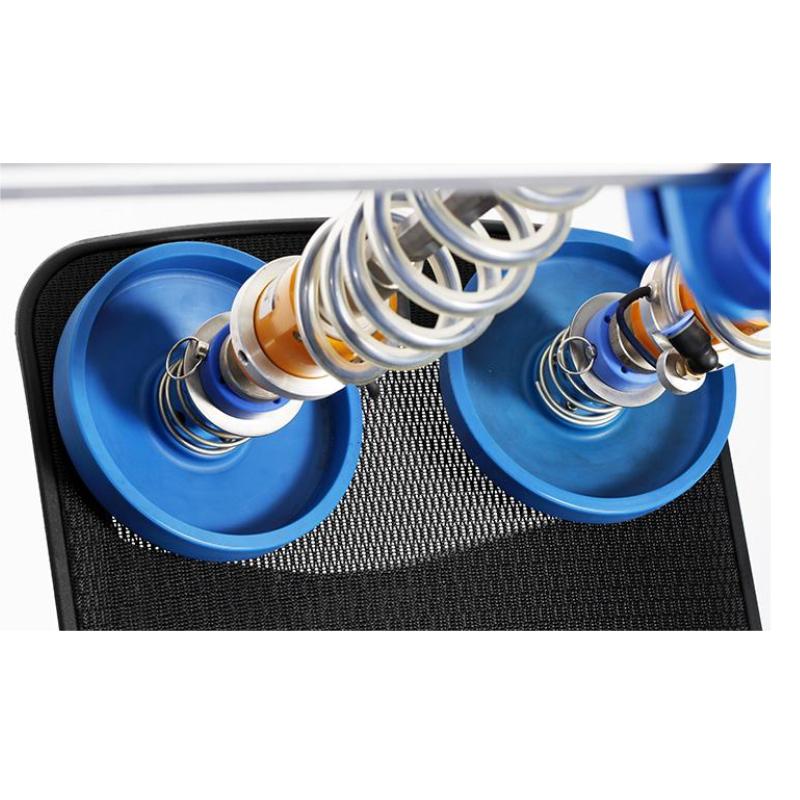

| WT-BSE-03 | Little Butt Loading Pad | 2set | loading pad | ||
| WT-BSE-02-01 | Standard stop-cup type | 5piece | Chair Specimen Fixing | ||
| WT-FIX-01 | Anti-rotation adjustable bezel | 2set | Prevents horizontal movement of the sample | ||
| WT-FIX-03 | chair legsLType platen | 1set | Fixed office chair legs | ||
| WT-BFM-11+A04 | Breakpoint Shutdown Switch Device | 1set | Check breakpoints,output stop signal | ||
| Non-standard accessories | WT-BSE-01-A | Seat loading pad (commonly known as: big butt) | 1set | Seat loading | |
| WT-BSE-04-SP | normal loading pad-Universal (plus spring) | 2set | loading pad | ||
