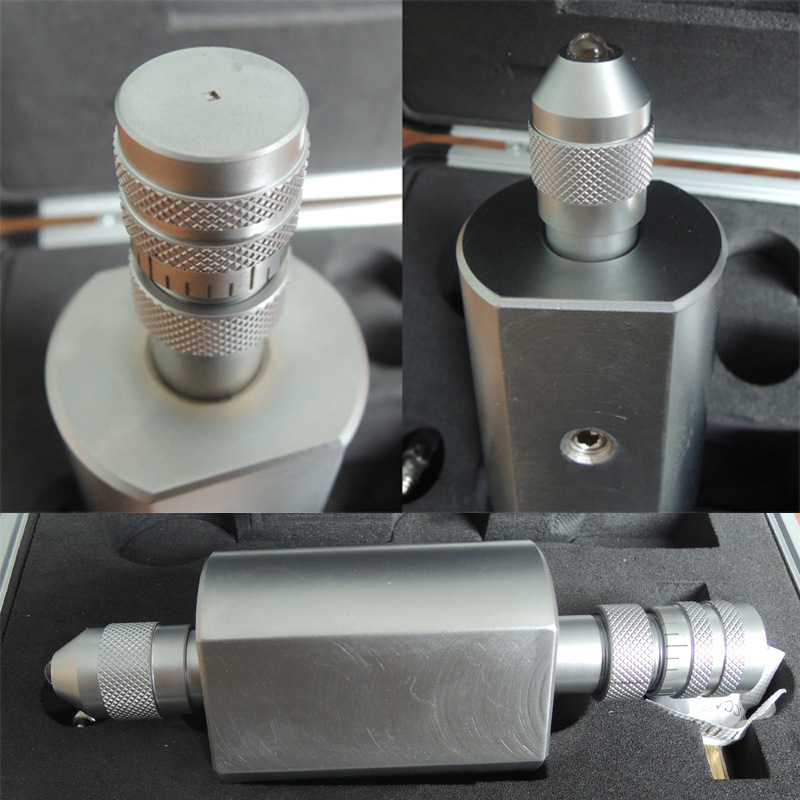

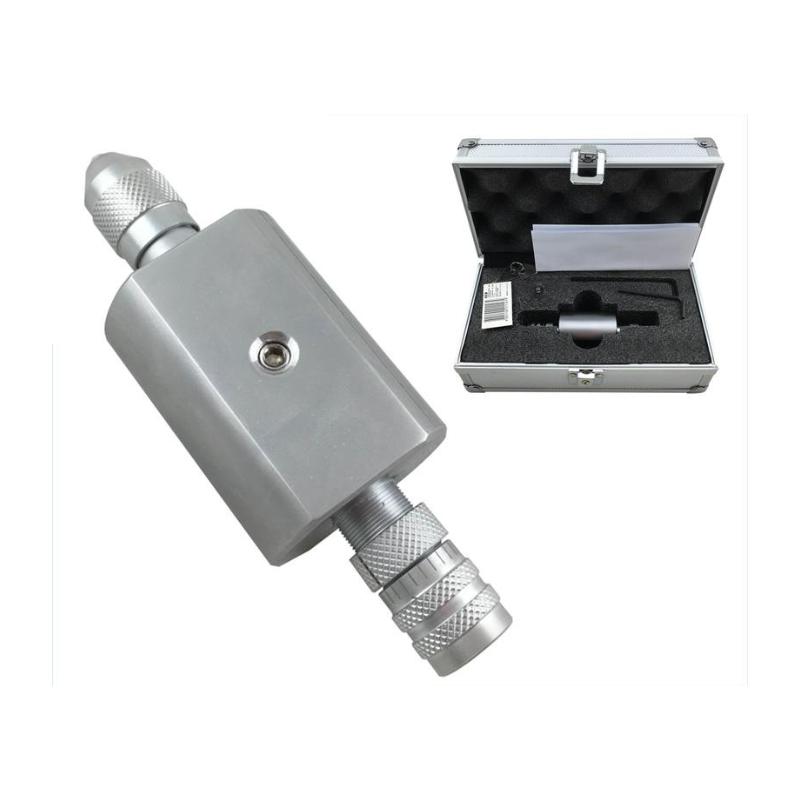

product description

The sharp point tester is used to detect whether there are sharp points that endanger safety in the accessible position of the toy, which is a toy safety test item. The requirements for technical parameters are consistent across countries.

Application: Used to detect the presence of sharp points that endanger safety in the accessible position of the toy.

Instructions:

— 、Principle:

The sharp tip tester is used to test the accessible sharp tip and observe whether the tip being tested is inserted into the sharp tip tester to the specified depth.

The depth of insertion of the tip under test determines its tax rate.

2. Reference documents;

3. Program:

adjust the tip tester, first loosen the locking ring, then rotate the locking ring to advance it far enough toward the indicator assembly to expose the calibration reference scale on the cylinder. Turn the measuring cap clockwise until the indicator light flashes. Rotate the measuring cover counterclockwise until the sensing head moves to a position 0.12 meters away from the contact battery .

Insert it into the measuring cover slot in the direction with the strongest tip rigidity, and apply an external force of 4.5N to compress as much as possible without making the tip pick over the edge of the slot or protrude through the cover slot, and observe whether the indicator light flashes. Bright.

Judgment result: If the pointed object to be measured is inserted into the measuring slot for 0.5mm or more, and the indicator light is flashing, and the above -mentioned point is

4. 5N still retains its original shape, then the above tip can be regarded as a sharp tip.


   Standard accessories	Numbering	name	quantity	use
   	NA	1.5VDCLight bulb	2indivual	spare1parts, installed on the product1piece
   	NA	1Pound counterweight broken code	1indivual	Counterweight, so that the overall self-weight of the test is equal to the test loading force, which is convenient for operation.
   	NA	3mm hex key		Disassemble and rebuild code
   	NA	5No1.5Volt dry battery	1indivual	powered by
   Purchase attention	1. International orders do not come with batteries, because international express prohibits products with batteries. 2.The most important accessory of the sharp tip tester is the bottom cover, which concentrates multiple dimensions that require precision machining. When our factory produces this accessory, we use laser marking to permanently retain the unique tracking identification number.
