| Brand Name | Wecantester |
|---|---|
| Place of Origin | |
| Standards | BIFMAX 5.1-2017, BS EN1022:2018, GB/T 10357.3-2013, QB/T 2280-2016 |
| topic | standard | chapter | Chapter title | ||
| standard | GB/T 10357.2-2013 | 4.1.1 | chair tipping test | ||
| 4.1.2 | Armless chair side tipping test | ||||
| 4.1.3 | Armchair side tipping test | ||||
| 4.1.4 | Overturning test of stool in any direction | ||||
| QB/T 2280-2016 | 6.6.1 | stability | |||
| BIFMA X5.12017 | 11.4 | Front Stability | |||
| BS EN1022:2018 | 7.3 | Furniture – Seating -Test procedures, all seating | |||

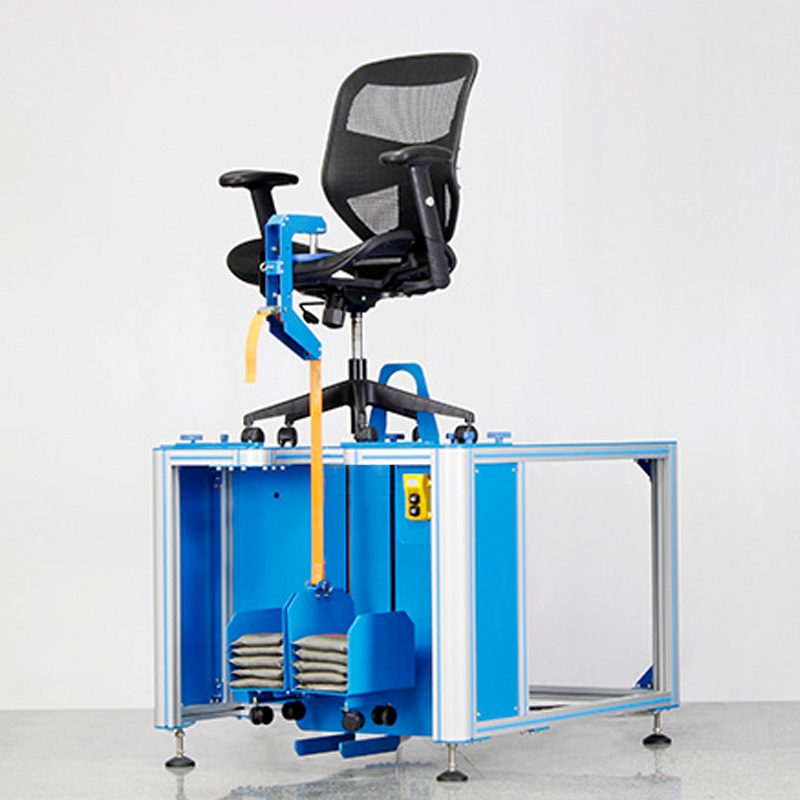

| Features | 1. Electric release loading, hovering at any position. 2. Simple and fast loading frame length adjustment structure and loading frame weight combination structure design. 3. Anti-rollover protection device is installed. 4.Universal foot pad equipment, so that the minimum distance between the equipment and the ground is greater than80mm for easy adjustment of equipment level and forklift handling. | ||||
| parameter | 1.Adjustable Release Stroke:50-250mm; adjustable loading weight:10-150 kilogram force. 2.Outside the whole machineshape size1200*1000*850mm, weight:168 Kilogram. 3.voltage:220VAC 2AO | ||||
| Standard accessories | Numbering | name | quantity | use | |

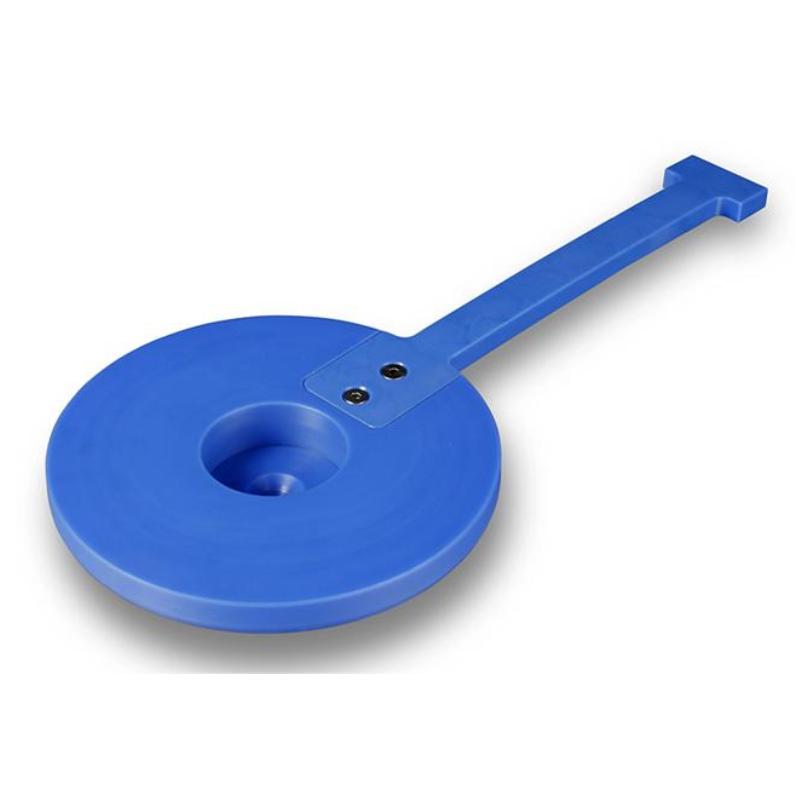

| WT-BFM-12+A01 | American Standard Auxiliary Loading Tool | 1piece | 1. Choose one according to the standard. 2.”Extension rod” material is different. | ||
| WT-BFM-12+A02 | European standard auxiliary loading tool | 1piece | |||

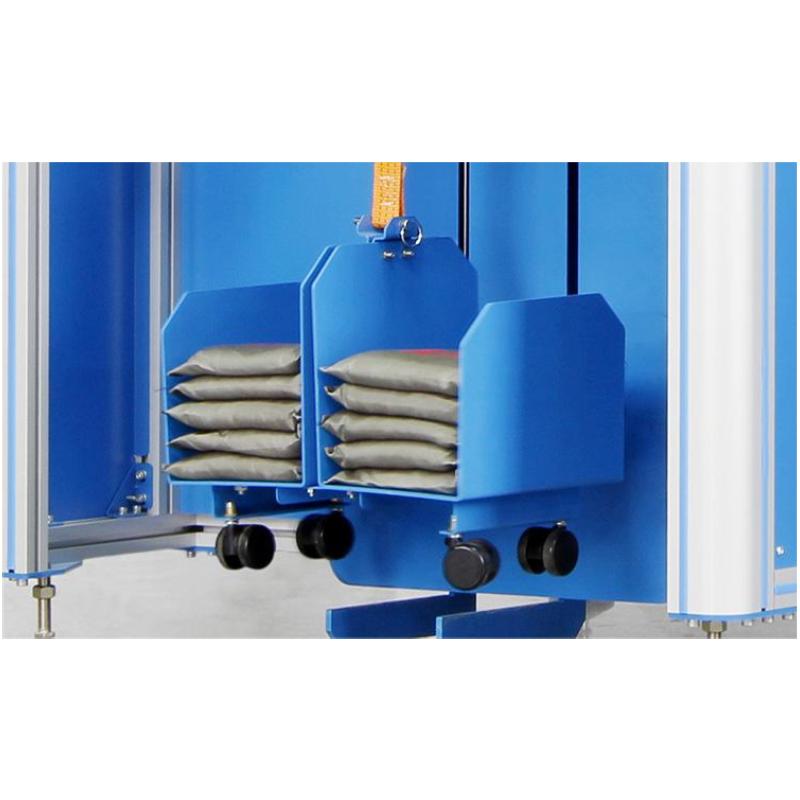

| WT-BFM-12-03 | Seat Stability Loading Weight Assembly | 1set | Including hook, lifting fixture and counterweight | ||
| Non-standard accessories | WT-BFM-12+B01 | Additional pulley set | 1set | Extended use / used to test the rear stability of the recliner | |
| WT-BFM-12+B02 | Additional platform | 1set | |||
