| Brand Name | Wecantester |
|---|---|
| Place of Origin | |
| Standards | QB/T 1952.1-2012 |

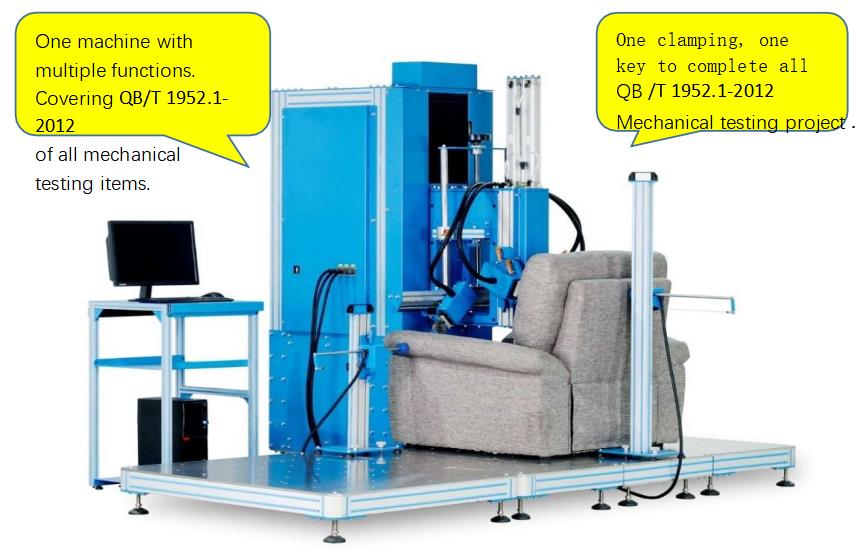

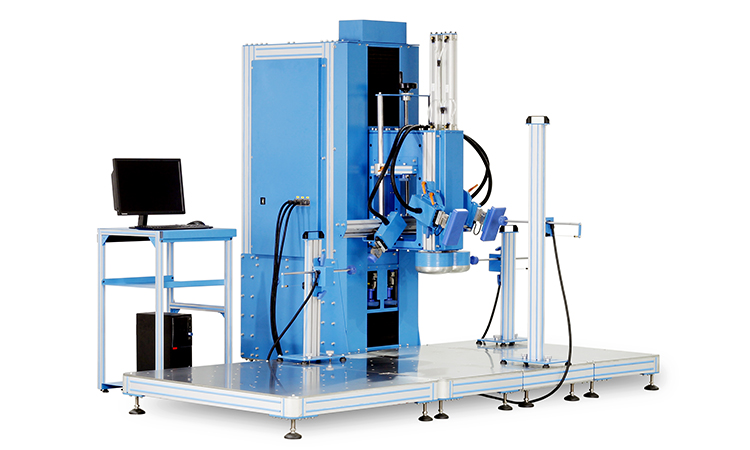

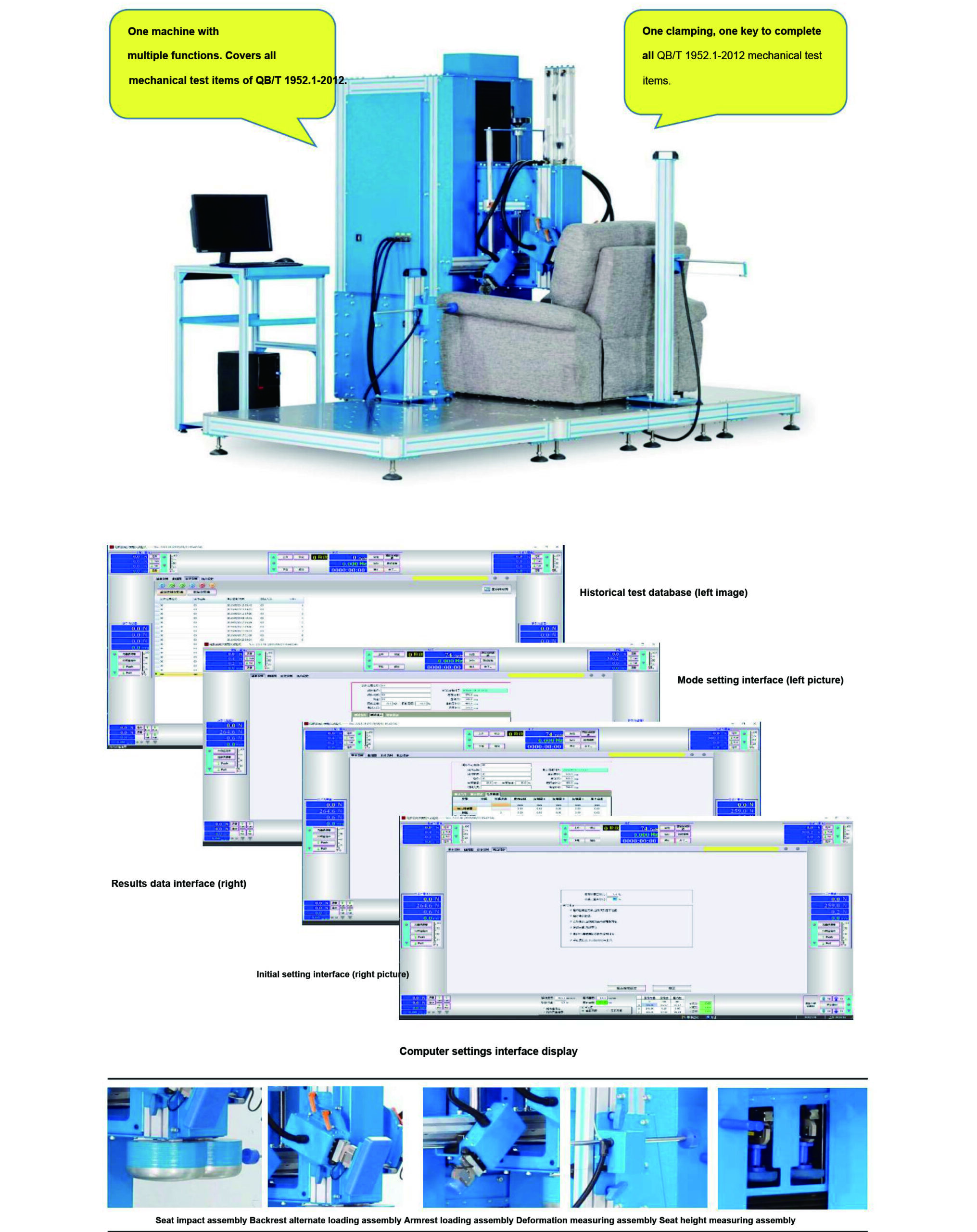

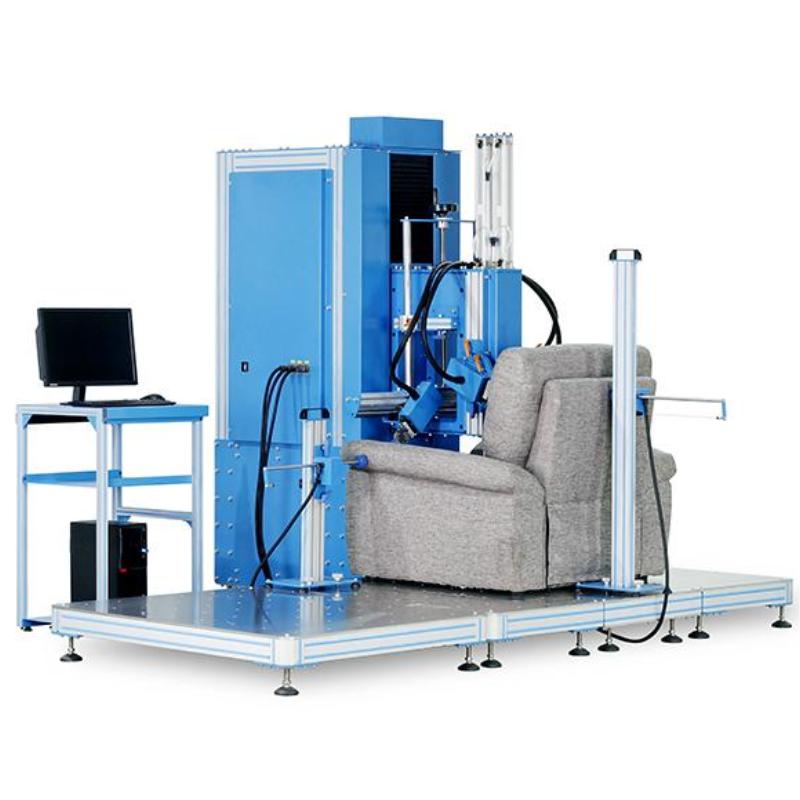

National standard sofa comprehensive testing machine
GB(QB)Sofa Tester
| Features | 1. The powerful automatic comprehensive testing machine consists of multiple sets of servo loading systems.
2. The special operating software developed by our company according to the requirements of standard testing procedures. You can choose to execute a test individually, or you can choose to complete all the tests at one time and fully automatically, and output a graphically described test result report. 3. All parameter settings and test results have automatic memory function of stop/power off to avoid loss of tested data. 4. Simple clamping structure design. All operations can be performed by one person without any tool assistance. 5. The test fixture is easy to install and disassemble, and the size of the test table can be arbitrarily spliced according to the size of the sofa |
||||||
| topic | standard | standard title | |||||
| standard | QB/T 1952.1-2012 | upholstered sofa | |||||
|
Functional component parameters |
Test items |
Seat surface + backrest + armrest combined durability test | Deformation | ||||
| Seat Surface Durability Test | Backrest inner diameter test
(alternate loading) |
Handrail Durability Test | Seat height measurement | seat armrest backrest
Deformation |
|||
| Component Control System | cylinder lift,
electromagnet release |
Pneumatic servo (proportional valve + sensor) closed loop
control |
1 channel AC servo
2-way cylinder |
Rotary encoding | |||
| vertical loading height | 280-750mm | 600-950mm | 350-750mm | 280-750mm | 150-1100mm | ||
| Horizontal loading stroke | unnecessary | 175-465mm | 500-1100mm | unnecessary | unnecessary | ||
| Loading displacement accuracy | ±2mm | ±0.2mm | |||||
| load force, precision | 50±5kg | 0-500N, ±1N | ±0.2mm | ||||
| Independent loading speed | 5-15 times/min | 5-25 times/min | unnecessary | unnecessary | |||
| Joint loading speed | The fastest is less than or equal to 15 times/min | unnecessary | unnecessary | ||||
| Loading and Transmission System | AirTAC cylinder
Qiandai electromagnet |
AirTAC cylinder
SMC proportional valve |
Panasonic Servo Motor
TBI ball screw |
unnecessary | |||
| force sensor | unnecessary | Ke Li, 200 kg | unnecessary | ||||
|
Device parameters |
Specimen Size Limits | 1. Without expansion platform: 2200*1800*700mm;
2. When the accessory expands the platform: 2200*1800*700mm; |
|||||
| Handrail width range | 500-1100 mm | ||||||
| Dimensions, net weight | 1. Dimensions of the main testing machine: 580*2340*1950 mm, net weight 1025 kg.
2. Dimensions of split computer console: 6000*540*1200mm; Net weight: 28.8kg (excluding computer) 3. Dimensions of the additional extended test platform: 600*1480*180 mm, 90 kg. |
||||||
| power supply, air supply | AC220 single-phase 50/60Hz, 1000W; air source ≥ 0.5MPa, need to be filtered and dried; | ||||||
| Numbering | name | quantity | use | ||||
|
Standard accessories |
WT -FIX-08 | brand computer | 1 | Test parameter input and output | |||
| WT -FIX-10 | Simple computer console | 1 | Placing computers and peripherals | ||||
| WT -FIX-11 | Genuine computer operating system | 1 | operating system | ||||
| WT -GBF-14-A01 | Lateral deformation detector | 3 | Deformation detection | ||||
| WT -GBF-14-A02 | Sample lateral positioning column | 2 | Seat height measurement point positioning | ||||
| WT -GBF-14-A03 | Additional removable platform | 1 | Extended test bench size | ||||
| WT -BSE-02-02 | Standard stop – Y shape | 4 | Sample positioning, blocking displacement | ||||
