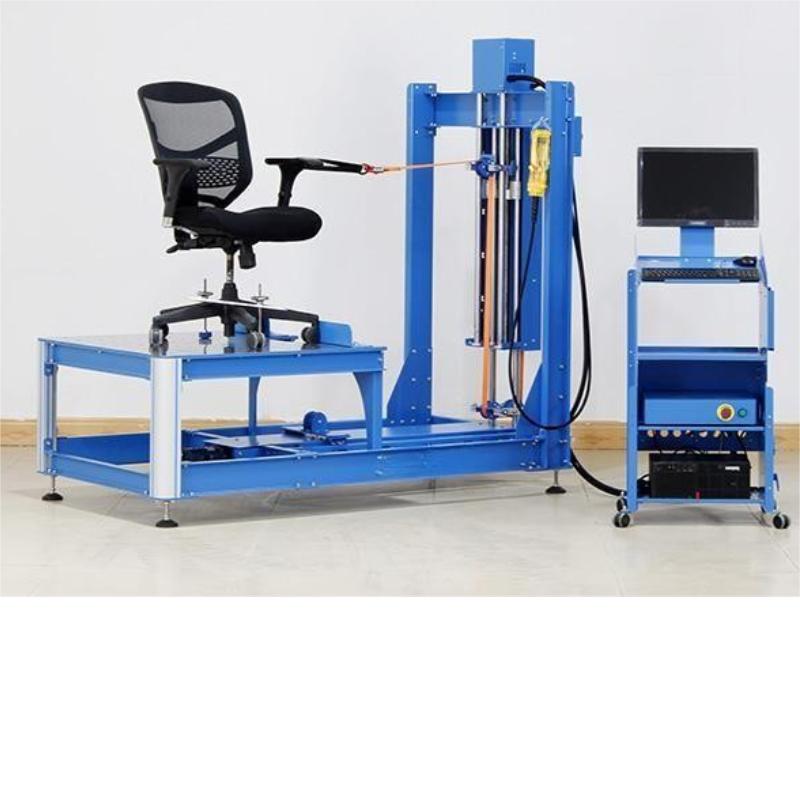

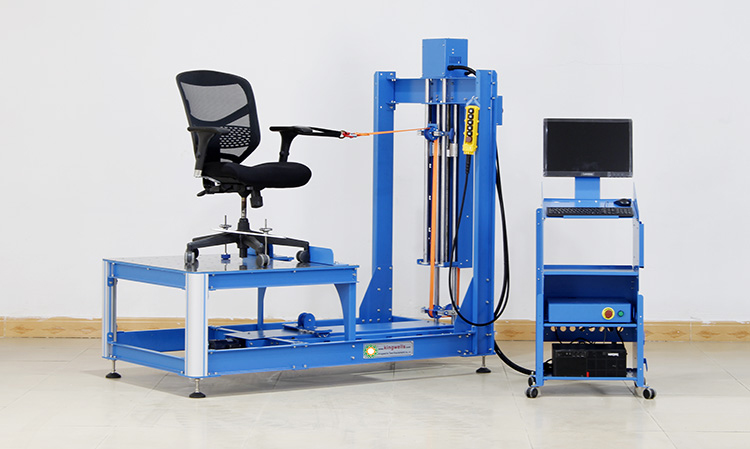

SV Seat Structural Strength Testing Machine-Servo Version

分类 Environmental Test Chamber 标签 WT-BFM-13

其他信息

Brand Name	Wecantester
Place of Origin	China
Standards	BIFMA X5.1-2017 QB/T 2280-2016

Product Details

Test object: Test the structural strength performance of the backrest, chair legs, armrests and footrests of seat products.

Function:

1. Parameter input: input through the touch screen;

2. Pulling force: The test is automatically controlled by the program to keep the pulling force constant within the range of 4% (the range can be set in the background);

3. Delay: The tension delay starts from the first time that the tension value reaches 96% of the set value, and when the delay arrives, the tension is unloaded.

WT-BFM-13-SV

Seat Structural Strength Testing Machine-Servo Version

Chair Strength Tester -Serv-controlled

topic	standard	zxizz-H-early	Chapter title

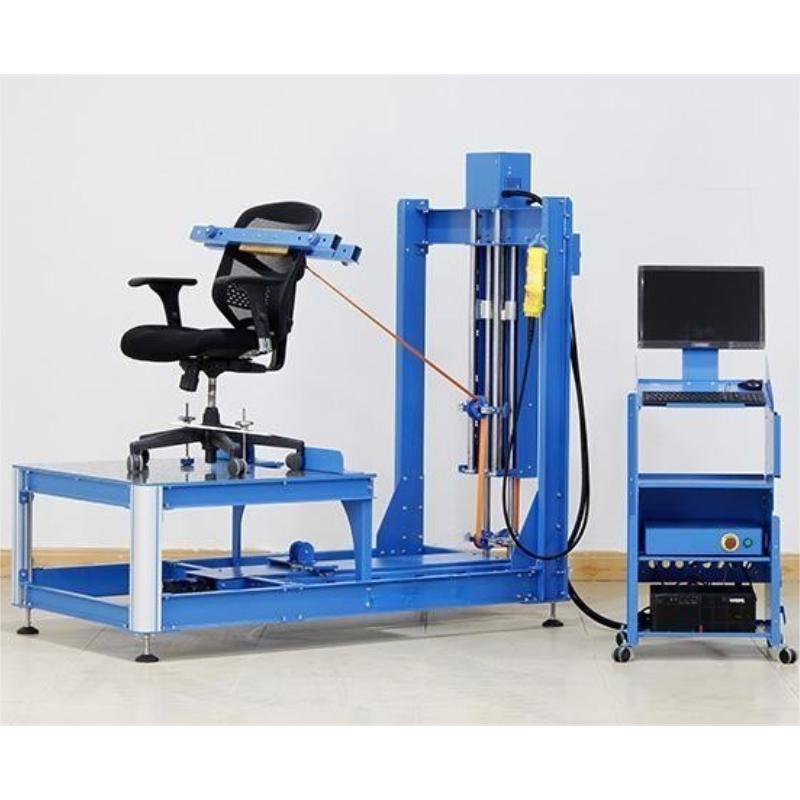

standard	BIFMAX5.1-2017	5&6	Backrest Strength Test – Static -Type I and II & Type III

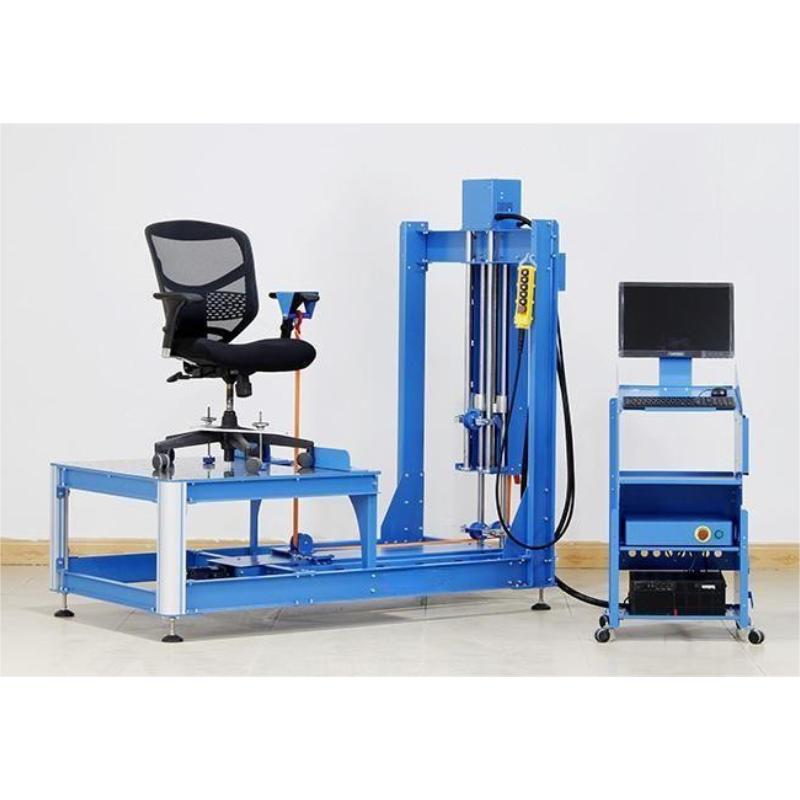

		12&13	Arm Strength Test – Vertical & Horizontal -Static
	QB/T 2280-2016	6.6.4&6.6.5	Handrail vertical downward static load&Horizontal static load of handrail
Features	1. – Multipurpose machine. Automatic, programmed, servo controlled. Various graph curves can be exported/and editable reports can be generated. 2.The angle of applied force is adjusted by the fixed pulley, covering multiple standard test conditions related to the strength of the backrest and armrest.
control	1. The material testing machine servo closed-loop control system is adopted. 2. Youji set of desktop computer, input, output and record test parameters, graph curves and generate editable reports. 3.It has overload automatic shutdown protection function, breakpoint automatic shutdown function and upper and lower limit protection function.
parameter	1.Output rated tension value:500Kilogram force, force value control accuracy:+/-2% . 2.Stroke range of applied force:800mm speed range:10-400mm/min; maximum applied horizontal force height:800 mm. 3.When the handrail is loaded vertically, the distance between the fixed pulley and the installation platform:350 mm. 4.main body20409801810mm, net weight278kg; split control5425801300mm, net weight28.8 Kilogram. 5. power supply220VAC, 5AO
important accessories	Accessory name	brand		quantity	Origin	use/function
	computer	HP or Lenovo		1tower	China	HMI
	MCU	Jinhui (factory)		1set	China	Core originals, program storage and operation
	AC Servo Motor	Matsushita		1set	China	power
	Pull pressure sensor	Keli		1piece	China	Convert the tensile force value into an electrical signal
Standard accessories	Numbering	name			quantity	use
	WT-BFM-13+A02	Handrail Strength Loading Plate			1set	Handrail Vertical and Horizontal Fixtures
	WT-BFM-03-BP	Seat Back Loading Pad – Back Pull			1set	Seat Back Clamping Fixture
	WT-FIX-05	1.5Inch3Mira Ribbon			1set	transfer tension
	WT-FIX-03	chair legsLType platen			1set	Fixed office chair legs
	WT-FIX-02	Chair rear foot high baffle			2piece	Block (fix) seat position
	WT-FIX-08	Original HP or Lenovo desktop computer			1set	HMI
	WT-FIX-10	Simple computer console			1tower	Placing computers and peripherals
Non-standard accessories	WT-FIX-06	Four-legged stool fixing clamp			1set	fixed seat
