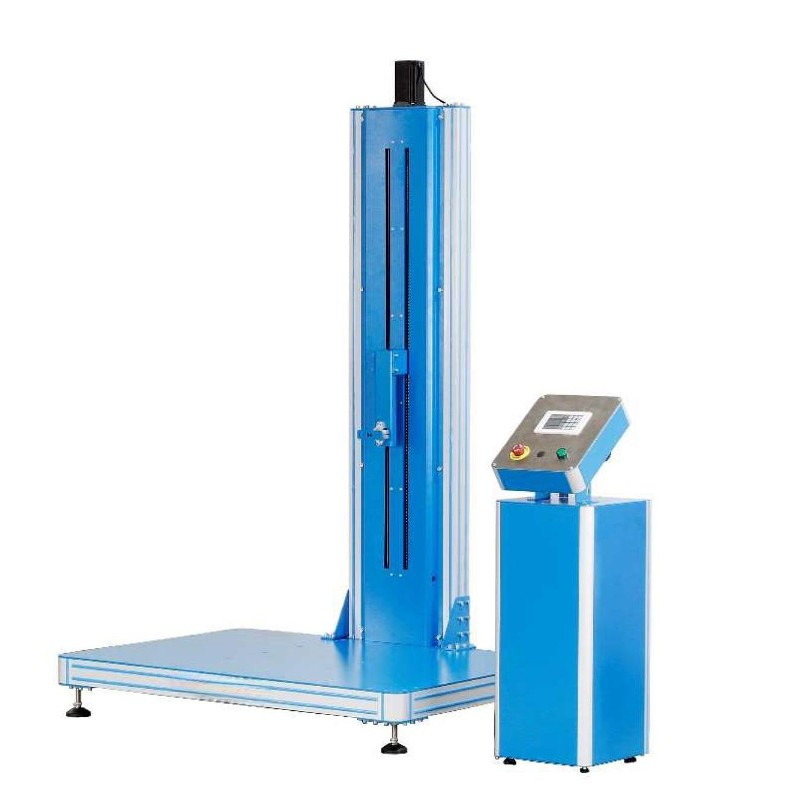

Upper and lower open cabinet door durability testing machine

分类 Furniture Mechanics Machines 标签 WT-BFM-28

其他信息

Brand Name	Wecantester
Place of Origin	China
Standards	EN16122:2012, GB/T 10357.5-2011

Product Details

Features:

1. Ball screw + double guide post improves load efficiency and structural rigidity;
2. The power adopts motor, and the starting position and ending position can be set arbitrarily within the stroke range;
3. The connection is connected with a freely retractable optical axis, which can be freely retracted as the path changes;
4. Use the motor controller to set the starting point, the stroke and the number of round trips;
5. Touch screen to set parameters, easy to operate;
6. Aluminum profile frame structure, beautiful and elegant structure;
7. With a variety of measurement units, both metric and inch systems can be switched; with automatic return function.

topic	standard	chapter	content
standard	GB/T 10357.5-2011	7.4.2	Durability test of vertical opening and closing roller doors
	EN16122:2012	7.4.2	Durability of vertical roll fronts
Features	1. Simple clamping structure design without any special auxiliary tools. 2. The power is driven by a stepper motor, and the starting and ending positions can be arbitrarily set within the stroke range. 3. The horizontal clamping sample fixture is connected with an optical axis that can be freely stretched to adapt to the vertical deformation of the sample without getting stuck. 4.Set parameters through the touch screen / including the starting point, the position of the turning point, the speed, the number of cycles and other parameters.
control	1. stepper motor drive,PLC Combination control. 2. Key screen input test parameters, output test results, with stop/power off memory function to avoid loss of test data. 3.Manually simulate opening and closing to confirm the starting point of opening and closing.
parameter	1.The running speed can be set:50-300 mm/sec. 2.Enable vertical height range:100-1300 mm. 3.The output maximum lifting force:300N o 4.Maximum sample size allowed on the test bench:1300600 mm. 5.Body size:13809802000mm, split control size:340340*1000mm, net weight:180 Kilogram. 6.power supply:220VAC, 5A.
important accessories	Accessory name	brand		Origin	quantity	use/function
	MCU	Wecan (factory)		China	1set	Core originals, program storage and operation
	stepper motor	Raise		China	1set	power
	Ball screw rod	TBI		China	1set	power transmission
Non-standard accessories	Numbering	name			quantity	use
	WT-BSE-02-02	Standard stop-ya shape			4set	Fix the position of the sample to be tested
