| Model | WT-BFM-29 |
|---|---|
| Place of Origin | |
| Brand Name | Wecantester |
| mark/scorpion | Thomasville Furniture Industries, Inc. |
| William Sonoma CT-120 | |

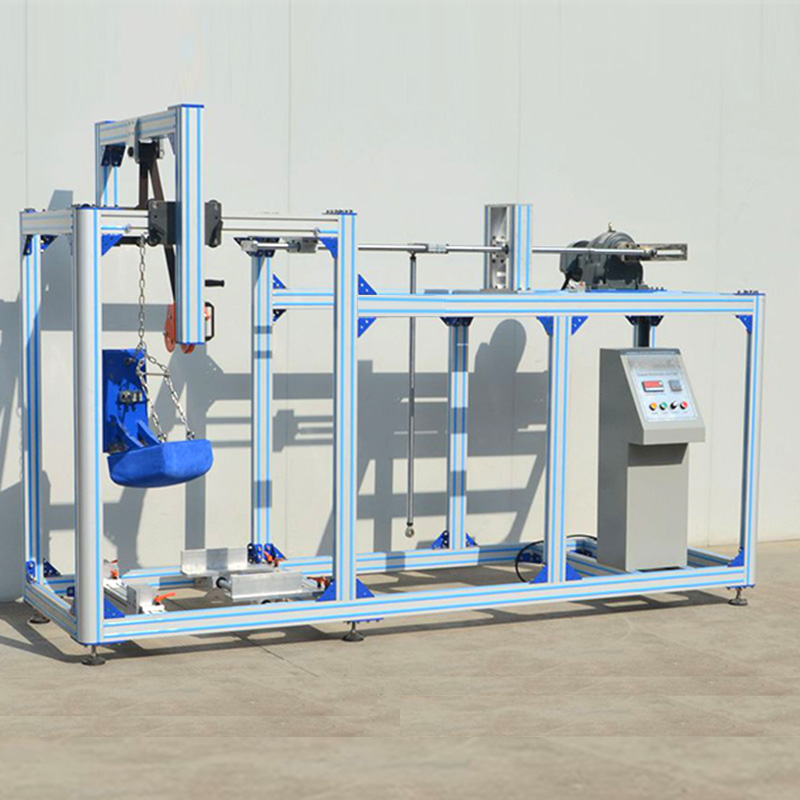

| purchase reference | 1.This device is manufactured by the United StatesThomasville Furniture Industries, Inc. Requested and developed. It is used to simulate the movement of the user sitting on a seat (stool, usually a dining chair) to drive the dining chair forward and backward, and to test the structural reliability and durability of the dining chair. O 2.As far as we know, so far, there areWilliam SonomaThe company incorporates this test into the company’s product standard planning. The major standards organizations in the United States do not use this test method. |
| Features | 1 .Aluminum alloy frame structure, beautiful and simple. 2. Equipped with a hand-cranked hoisting seat simulation loading device for easy operation. 3.Gimbal equipment / make the minimum distance between the equipment and the ground greater than80 mm for easy adjustment of equipment level and forklift handling. 4.Size-adjustable sample holder. Sample clamping for any structure. |
| control | 1. PLCControl, touch screen to input test parameters and output test results. (Note: The structure shown in the figure is an industrial control control, which will be used instead in the future.PLC and touch screen combined control) 2.The simple clamping structure design of the sample does not require any special tools to assist, which is convenient and fast. |
| parameter | 1.Adjustable rotation speed:15 ~ 30 rev/min. 2.counter:6 Bit, with stop/power-off memory function to avoid loss of test data. 3.Adjustable thrust stroke:150-500 mm. 4.Dimensions: long2900Fu Kuan900*high1780mm, weight:280 Kilogram. 5.power supply:220VAC, 10Ao |
